1241922

Overview

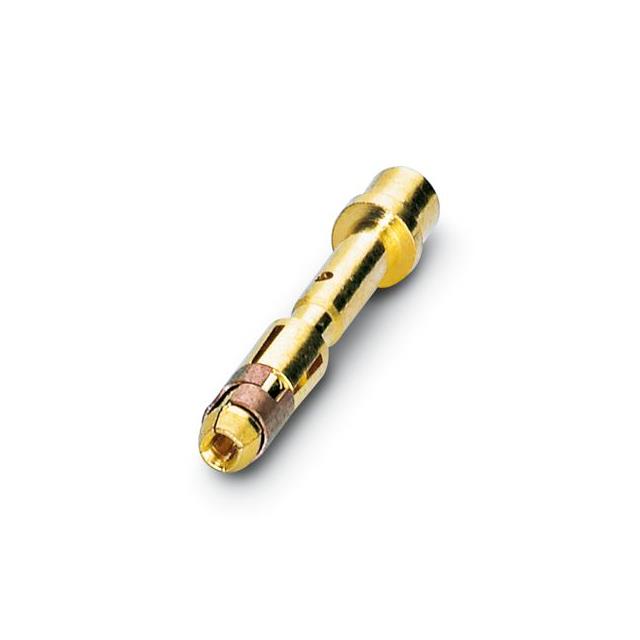

Phoenix Contact part number 1241922 is a crimp pin contact designed for SF series connectors. It features a hole-type plug configuration with a 1 mm diameter and a wire cross-section range of 0.06 mm² to 1.00 mm². The contact utilizes a crimp connection method and is constructed from CuZn material with Ni and Au plating. It supports an insertion/extraction cycle of 100 operations and complies with RoHS II standards.

Feature Summary

• Crimp pin contact with hole-type plug design
• Constructed from CuZn with Ni and Au surface treatments
• Compatible with SF series connector systems

Applications

• Industrial control cabinet wiring
• Factory automation signal connections
• Process industry equipment interconnects

Procurement Notes

Verify the specific product code against official Phoenix Contact documentation to ensure compatibility with the intended SF series housing. Confirm that the selected tooling matches the required crimp specifications for the 0.06-1.00 mm² wire range. Ensure environmental conditions align with the component's operational limits and compliance declarations.

Selection Notes

Select this component when a reliable crimp connection is required for SF series devices. The gold-plated contacts offer corrosion resistance suitable for industrial environments. Ensure the mating connector housing supports the specified 1 mm contact diameter and hole-type interface for proper mechanical locking.

Part Context

This component belongs to the Phoenix Contact SF series, which provides standardized connectivity solutions for industrial applications. The SF series is widely used in factory automation and process industries due to its robust design and ease of assembly. This specific contact ensures secure electrical connections within these modular systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing housings before considering alternative sources.

FAQ

What is the wire cross-section range for this contact?

The contact supports a wire cross-section range of 0.06 mm² to 1.00 mm².

What material is used for the contact body?

The contact body is made of CuZn (copper-zinc alloy) with nickel and gold plating.
