12DCCG5B

Overview

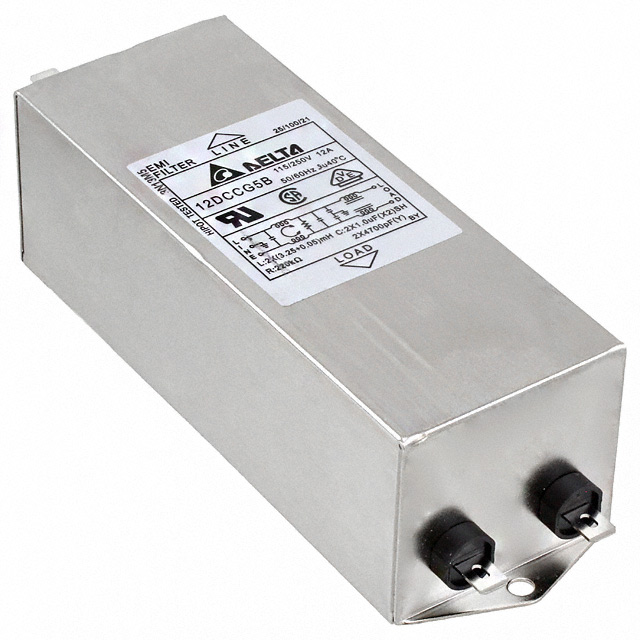

The Delta Electronics 12DCCG5B is a single-phase, two-stage power line filter designed for chassis mounting. It features tab connectors for termination and supports voltage ratings of 115 VAC and 250 VAC with a current rating of 12 A. The component operates at frequencies of 50 Hz and 60 Hz and has a leakage current of 2 mA. It holds UL, CSA, and VDE compliance certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with tab connector termination
• Certified for international safety standards including UL, CSA, and VDE

Applications

• Industrial equipment power conditioning
• Medical device power supply input protection
• General purpose electronic systems requiring switching transient filtration

Procurement Notes

Verify the specific datasheet version as availability may vary by region. Confirm that the tab connector style matches your assembly requirements. Check for end-of-life status or alternative part recommendations from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when a two-stage filter is required for 12 A applications. Ensure the chassis mounting style fits the enclosure design. Verify that the 115/250 VAC rating aligns with the system's operating voltage and frequency specifications.

Part Context

This component belongs to the DP series of power line filters manufactured by Delta Electronics. It is categorized under power condition products and is designed to mitigate electromagnetic interference in AC power lines.

Replacement Considerations

Consult official documentation for direct substitutes. Cross-reference pinouts and electrical ratings if considering alternatives from other manufacturers.
