12DKBG5B

Overview

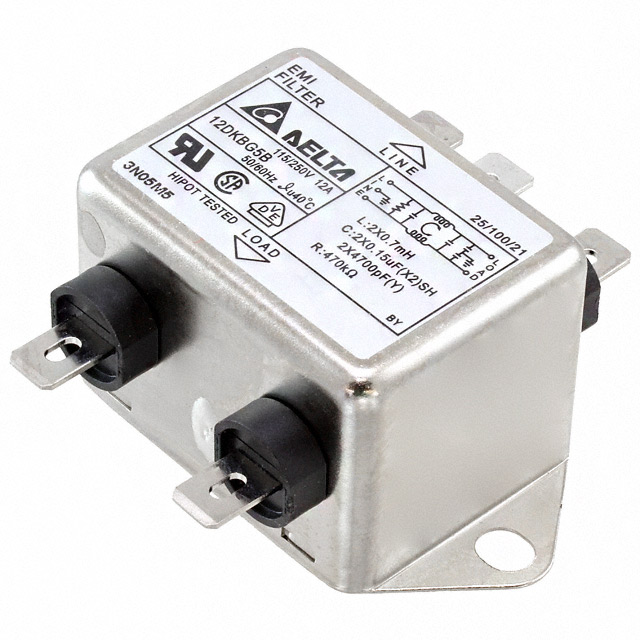

The Delta Electronics 12DKBG5B is a single-stage, general-purpose power line filter designed for chassis mounting. It features a rated current of 12A and supports voltage ratings of 115VAC and 250VAC. The component utilizes lug-to-lug termination styles for secure electrical connections. Operating at standard frequencies of 50Hz or 60Hz, it provides effective EMI suppression in compliance with UL, CSA, and VDE standards.

Feature Summary

• Provides effective electromagnetic interference (EMI) suppression for general-purpose applications
• Features chassis mounting design with lug-to-lug termination for robust installation
• Complies with international safety certifications including UL, CSA, and VDE approvals

Applications

• Industrial equipment requiring EMI filtering
• Commercial machinery power input stages
• General-purpose electronic enclosures

Procurement Notes

Verify the specific datasheet revision to confirm leakage current limits and hipot ratings for your operating voltage. Ensure chassis mounting holes align with the physical dimensions specified in the official documentation. Confirm that the lug-to-lug termination style matches your wiring harness requirements before finalizing procurement.

Selection Notes

Select this model when a single-stage filter is sufficient for your EMI reduction needs. The 12A rating suits moderate power applications. Consider the chassis mounting requirement during mechanical design. Verify that the 115VAC/250VAC voltage ratings cover your system's operational range and frequency specifications.

Part Context

This component belongs to Delta Electronics' series of general-purpose one-stage filters. These components are engineered to meet stringent safety and performance standards for industrial and commercial use. The series offers various current ratings to accommodate different power levels while maintaining consistent form factors for easy integration into existing designs.

Replacement Considerations

Consult official Delta documentation for verified substitute part numbers within the same product family. Ensure any replacement maintains identical voltage, current, and mounting specifications.
