12DPCG5B

Overview

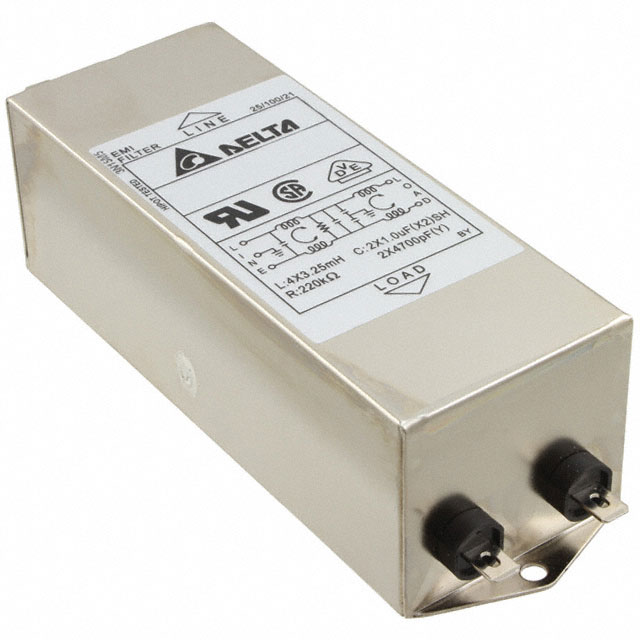

The Delta Electronics 12DPCG5B is a single-phase, two-stage EMI/EMI line filter designed for chassis mounting. It supports AC voltage ratings of 115 VAC and 250 VAC with a current rating of 12 A. The unit operates at frequencies of 50 Hz and 60 Hz and features tab connectors for termination. It has a leakage current of 2 mA and complies with UL, CSA, and VDE standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Tab connector termination for straightforward wiring

Applications

• General purpose power line filtering
• Switching transient mitigation in electronic equipment

Procurement Notes

Verify component status as the 12DPCG5B is listed as obsolete or end-of-life by the manufacturer. Confirm availability through secondary distributors if immediate procurement is required. Ensure compatibility with existing chassis mounting hardware and terminal specifications before finalizing orders.

Selection Notes

Select this model for applications requiring single-phase filtering at 12 A. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the 115 VAC/250 VAC rating matches the system voltage and that tab connectors align with the circuit board or wire harness interface requirements.

Part Context

This component belongs to the DP series of power line filters manufactured by Delta Electronics. These filters are engineered to address electromagnetic interference issues in various electronic devices. The specific model provides a balance of current capacity and noise reduction for standard industrial and commercial applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, alternative components must be evaluated based on matching electrical ratings, physical dimensions, and mounting configurations.
