12DPCG5C

Overview

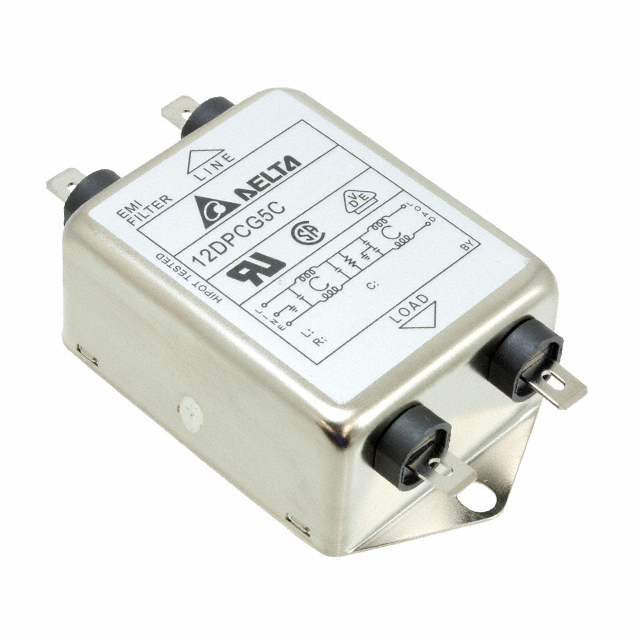

The Delta Electronics 12DPCG5C is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports AC voltages of 115V and 250V at operating frequencies of 50Hz and 60Hz. The component handles a rated current of 12A and features a two-stage configuration with an inductance of 970µH. Termination is achieved via quick-connect lugs, and it holds CSA, UR, and VDE certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation with quick-connect termination
• Certified for international safety standards including CSA, UR, and VDE

Applications

• Industrial equipment power input stages
• Medical device power supplies
• General purpose electronic systems requiring EMI reduction

Procurement Notes

Verify the specific certification marks required for your target market against the official datasheet before ordering. Confirm that the quick-connect lug dimensions match your terminal block specifications. Check the End-of-Life notification status to ensure long-term availability for production runs.

Selection Notes

Select this model when a single-phase solution with 12A capacity is needed for 115V or 250VAC systems. Ensure the chassis mounting style fits the enclosure design. Compare inductance values if stricter attenuation requirements exist, as this unit provides 970µH per stage.

Part Context

This component belongs to the DP series of power line filters from Delta Electronics. These filters are engineered for switching transient suppression and general EMI mitigation in AC power lines. The series offers various current ratings and termination options to suit different industrial and commercial applications.

Replacement Considerations

Check for direct substitutes within the DP series with matching current ratings. Verify that any alternative maintains the same two-stage topology and quick-connect termination style to ensure mechanical compatibility.
