12FC10

Overview

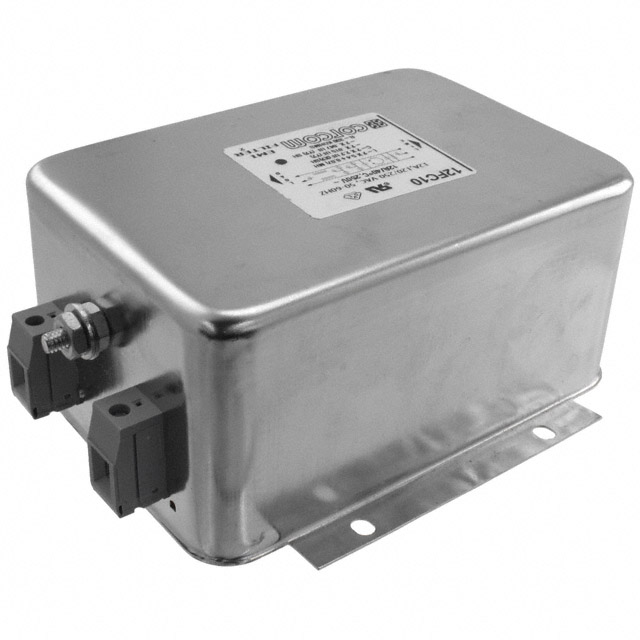

The TE Connectivity Corcom Filters 12FC10 is a single-phase EMC/EMI line filter rated for 12 A at 250 VAC and 50/60 Hz. It features a two-stage configuration designed for chassis mounting with terminal block termination. The unit operates within a temperature range of -10°C to 40°C and holds UR certification.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Terminal block termination for secure wiring connections
• Chassis mount design for industrial integration

Applications

• Inverter systems
• Power drive systems
• General purpose industrial equipment

Procurement Notes

Verify the specific voltage rating and current capacity against your system requirements before ordering. Confirm that the terminal block termination style matches your existing wiring infrastructure. Ensure the chassis mounting dimensions are compatible with your enclosure design. Check for any specific certification requirements such as UR compliance for your target market.

Selection Notes

Select this model when a two-stage EMI/RFI filter is required for single-phase AC power lines up to 12 A. It is suitable for applications involving inverters and power drives where significant noise reduction is necessary. Consider the terminal block connection method if screw-type terminations are preferred over quick-connect styles.

Part Context

This component belongs to the FC series of Corcom filters, which are specialized for high-current applications in industrial environments. The series focuses on robust construction and effective electromagnetic interference suppression for demanding power electronics applications.

Replacement Considerations

Public confirmed substitute part numbers: None available.
