Product Detailed Parameters
- Description：LINE FILTER 130A CHASSIS MOUNT
- Series：BCFXR
- Mfr：TE Connectivity Corcom Filters
- Package：Tray,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：130 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：550µH
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

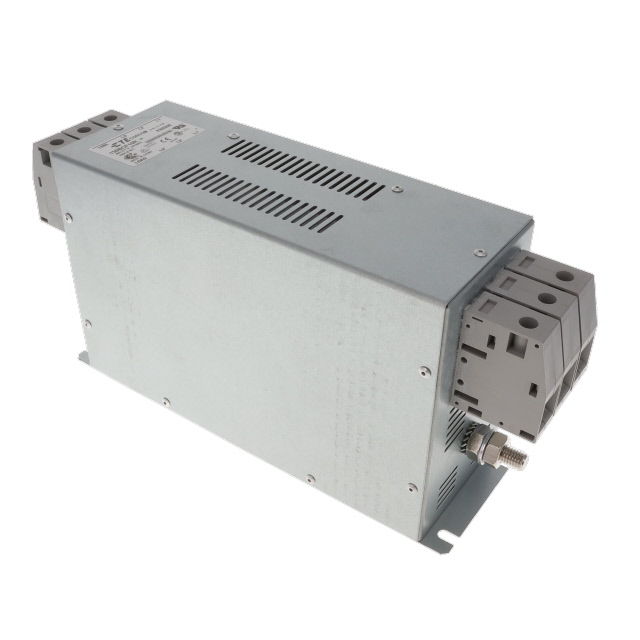

The TE Connectivity Corcom Filters 130BCF10R is a three-phase delta EMC/EMI line filter designed for industrial power systems. It operates at 50Hz/60Hz with a rated current of 130A and a voltage rating of 480VAC. The unit features terminal block input and output termination types, ensuring secure electrical connections. Designed for flange mount installation, it effectively reduces electrical noise and interference within the specified industrial environment.
Feature Summary
- Three-phase delta configuration for industrial power applications
- Terminal block termination for secure wiring
- Flange mount design for stable chassis integration
Applications
- Industrial power systems
- Electrical noise reduction in manufacturing equipment
- Interference suppression in heavy machinery
Procurement Notes
Verify the specific datasheet version and technical specifications directly from TE Connectivity official documentation before procurement. Confirm that the terminal block orientation and flange mounting dimensions align with your system requirements. Ensure the 130A current rating and 480VAC voltage specification match your operational parameters to guarantee safe and effective performance.
Selection Notes
Select this component when a three-phase delta configuration is required for high-current industrial applications. The 130A rating and 480VAC capability suit heavy-duty environments. Terminal block termination offers robust connection stability. Flange mounting provides secure mechanical support. Verify compatibility with existing panel cutouts and wiring infrastructure.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, specializing in electromagnetic compatibility solutions. The 130BCF10R specifically addresses three-phase power filtering needs. It complements other single-phase and modular filters in the Corcom portfolio by providing high-capacity noise suppression for complex industrial power distribution networks.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity official documentation or authorized distributors for verified equivalent components or cross-reference options.
