130BCF6R

Overview

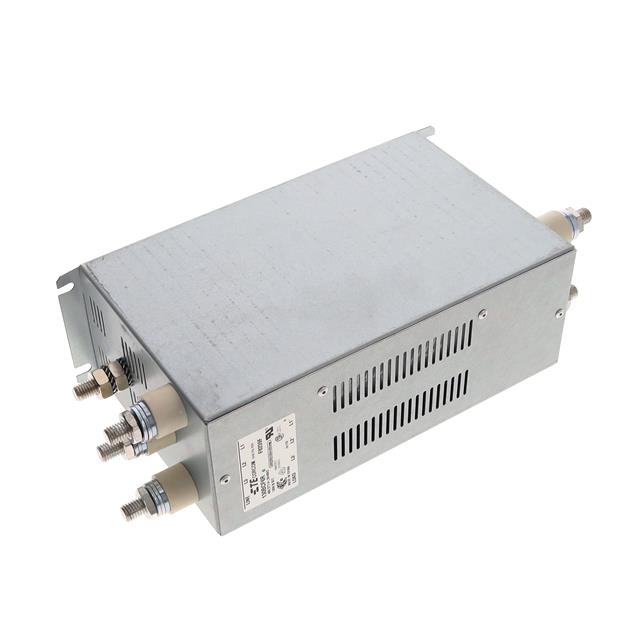

The TE Connectivity Corcom Filters model 130BCF6R is a three-phase (Delta) EMC/EMI line filter designed for industrial applications. It features a rated current of 130 A and operates at frequencies of 50/60 Hz with a voltage rating of 480/227 V AC. The component utilizes a two-stage filtering configuration to attenuate conducted noise. Mechanical termination is achieved via threaded posts with an M5 specification, facilitating secure chassis or panel mounting in high-current power distribution systems.

Feature Summary

• Provides effective attenuation of common and differential mode radio frequency interference below 100 kHz
• Features a compact, lightweight book-form design suitable for space-constrained installations
• Engineered specifically for electronic lighting devices containing fluorescent lamp ballasts or solid state drivers

Applications

• Electronic lighting devices with fluorescent lamp ballasts
• Solid state lighting driver circuits
• Surface mount track lighting systems
• Recessed fixtures in higher temperature environments

Procurement Notes

Verify the specific phase configuration and voltage ratings against the system requirements before procurement. Confirm that the M5 threaded post termination matches the available mounting hardware. Ensure the ambient operating conditions do not exceed the specified thermal limits for the intended application environment.

Selection Notes

Select this component when high current capacity of 130 A is required for three-phase Delta systems. Consider the two-stage architecture for superior noise suppression compared to single-stage alternatives. Evaluate the physical dimensions of the book-form design to ensure compatibility with the target enclosure or rack space constraints.

Part Context

This part belongs to the Corcom BCF series of power line filters manufactured by TE Connectivity. The series is characterized by its robust construction and suitability for demanding commercial and industrial environments. It serves as a critical component for maintaining electromagnetic compatibility in power-sensitive equipment.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
