130TDVST2-1

Overview

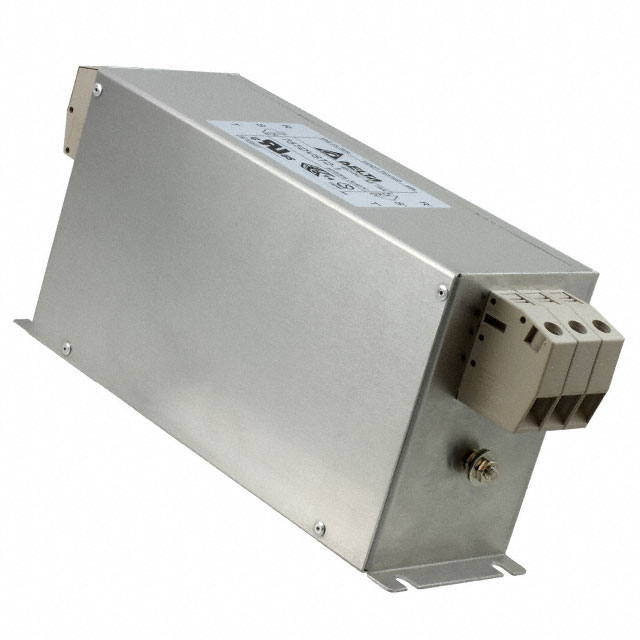

The Delta Electronics 130TDVST2-1 is a three-phase, three-wire power line filter designed for chassis mounting. It supports a continuous current of 130A and operates at a voltage rating of 480VAC. The unit features vertical orientation with terminal block-to-terminal block connections. This component serves as an electromagnetic interference (EMI) suppression device for industrial electrical systems requiring robust noise filtering capabilities.

Feature Summary

• Provides three-phase EMI filtering for industrial power applications
• Designed for secure chassis mounting with vertical orientation
• Utilizes terminal block connections for straightforward wiring integration

Applications

• Industrial motor drive systems
• Three-phase power distribution networks
• Electrical equipment requiring EMI suppression

Procurement Notes

Verify the specific datasheet version before procurement, as this part number is listed as End of Life or scheduled for obsolescence by major distributors. Confirm that the 130A current rating and 480VAC voltage specifications align precisely with your system requirements. Ensure compatibility with existing chassis mounting structures and terminal block wiring configurations to avoid integration issues during replacement.

Selection Notes

Select this model only if the application strictly requires a 130A capacity and 480VAC rating for three-phase systems. Consider the physical dimensions and vertical mounting constraints inherent to the chassis design. Evaluate whether the terminal block interface meets the panel layout needs. Verify that the EMI attenuation characteristics provided in the official documentation satisfy the specific EMC standards required by the target installation environment.

Part Context

This component belongs to Delta Electronics' range of EMI filters, which are engineered to address electromagnetic compatibility issues across various voltage ranges. The company manufactures filters from single-phase to high-current three-phase units up to 600A. These products aim to shorten design cycles and accelerate product time-to-market by providing effective noise suppression solutions for diverse industrial and commercial power applications.

Replacement Considerations

Official substitute part numbers are not explicitly confirmed in the provided source material. Due to the End of Life status, verify availability through authorized channels or consult Delta Electronics directly for approved cross-references. Do not assume generic compatibility without validating electrical ratings and mechanical fit against the original specifications.
