Headers, Male Pins Overview

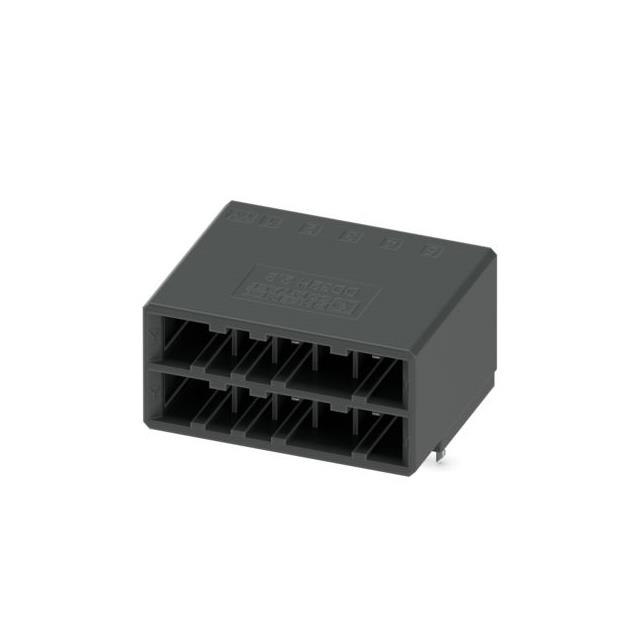

Phoenix Contact 1378306 is a COMBICON header connector designed for through-hole mounting. It features a right-angle configuration with ten positions and a 5.08 mm pitch. The component utilizes male pin contacts suitable for PCB integration. This series supports reliable signal and power transmission in industrial environments, offering a compact solution for control cabinet wiring and equipment interconnections.

Headers, Male Pins Feature Summary

• Right-angle design facilitates space-efficient board layout
• Through-hole mounting ensures secure PCB attachment
• Male pin contact type enables mating with compatible plugs

Headers, Male Pins Applications

• Industrial control cabinet wiring
• Signal transmission in automation systems
• Equipment interconnection modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact pin count and housing color. Ensure compatibility with mating COMBICON plugs regarding current ratings and voltage categories. Confirm that the right-angle orientation matches the mechanical constraints of the target printed circuit board assembly.

Headers, Male Pins Selection Notes

Select this model when a ten-position right-angle header is required for through-hole technology. Verify that the 5.08 mm pitch aligns with the existing board footprint. Consider the mating plug requirements for the specific application current and environmental conditions.

Headers, Male Pins Part Context

This component belongs to the Phoenix Contact COMBICON Connectors S product line. The series provides standardized connection solutions for various industrial applications. The 1378306 variant specifically addresses the need for multi-pin headers with a defined pitch and mounting style.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Phoenix Contact COMBICON headers with identical 5.08 mm pitch and ten-position configurations. Verify mechanical dimensions and electrical ratings before substitution.
