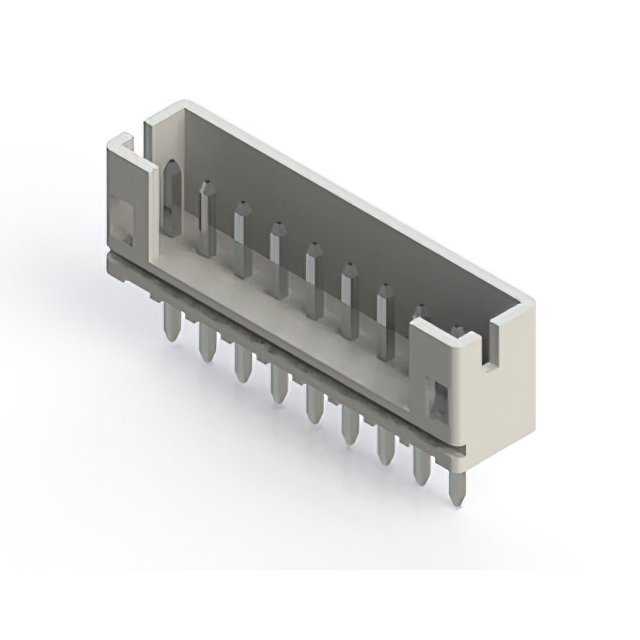

140-509-415-101

$0.12

Description：2.0MM PITCH CONNECTOR WITH 9 P.C
Series：140
Mfr：EDAC Inc.
Package：Bulk

SKU:c1fcb866b889 Category: Headers, Male Pins Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

140-509-415-101 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is 2.0MM PITCH CONNECTOR WITH 9 P.C. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 140-509-415-101

Description：2.0MM PITCH CONNECTOR WITH 9 P.C
Series：140
Mfr：EDAC Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：9
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Detent Lock
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.240" (6.10mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：2A
Voltage Rating：100VAC/DC

Headers, Male Pins datasheet and documents for 140-509-415-101

140-509-415-101

Headers, Male Pins Overview

The EDAC Inc. 140-509-415-101 is a wire-to-board inline connector featuring 9 positions in a single row with a 2.00 mm pitch. It utilizes through-hole termination for secure PCB mounting and operates within a temperature range of -40°C to +105°C. The component has a current rating of 2A and a voltage rating of 100V. Constructed with a low-profile insulator body measuring 6.1mm in height and 4.70mm in width, it ensures compact integration. The connector system is designed for reliable signal transmission in space-constrained applications.

Headers, Male Pins Feature Summary

Low-profile design for compact assembly
Through-hole termination for robust mounting
Inline configuration for direct wiring

Headers, Male Pins Applications

Compact electronic device interconnects
Industrial control panel wiring
Consumer electronics internal connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and pitch specifications. Ensure that the through-hole mounting requirements align with the target PCB layout. Confirm RoHS compliance status if environmental regulations apply to the end product. Cross-reference the operating temperature range with the application environment to guarantee reliability under thermal stress conditions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row wire-to-board connection is required. Consider the 2.00 mm pitch for spacing constraints and the 2A current rating for load requirements. Evaluate the through-hole installation method against surface-mount alternatives based on mechanical stability needs. Verify compatibility with mating cables and housing materials for optimal performance.

Headers, Male Pins Part Context

This connector belongs to the EDAC 140 series, which focuses on versatile header and wire housing solutions. The series offers various position counts and pitch options to accommodate diverse design needs. The 140-509-415-101 specifically addresses applications requiring a compact, reliable inline connection with standard through-hole mounting capabilities.
