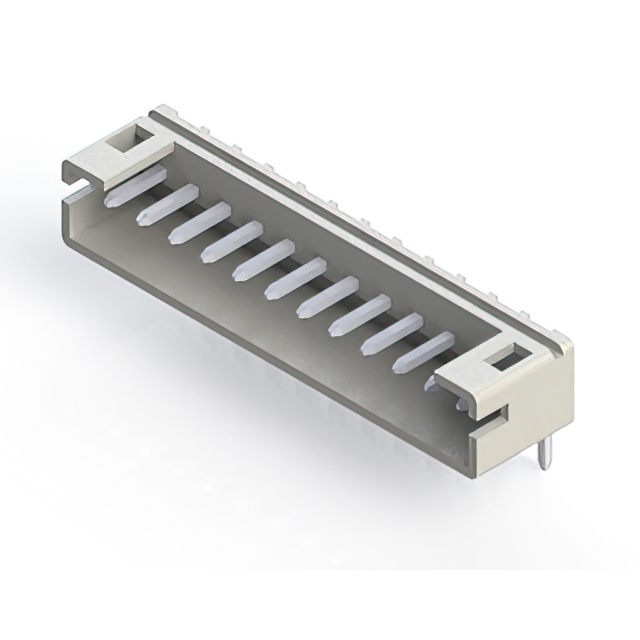

140-512-415-100 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is 2.0MM PITCH CONNECTOR WITH 12 P.. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 140-512-415-100
- Description：2.0MM PITCH CONNECTOR WITH 12 P.
- Series：140
- Mfr：EDAC Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：12
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：-
- Contact Length - Post：0.134" (3.40mm)
- Overall Contact Length：-
- Insulation Height：0.185" (4.70mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：2A
- Voltage Rating：100VAC/DC
Headers, Male Pins datasheet and documents for 140-512-415-100
Headers, Male Pins Overview
The EDAC Inc. 140-512-415-100 is a 12-position inline connector belonging to the 140 Series. It features a 2.00mm pitch and utilizes male pins for wire-to-board connections. The component is designed as an SMT header with side entry configuration, facilitating surface mount assembly processes.
Headers, Male Pins Feature Summary
- Provides 12 electrical positions for signal transmission
- Utilizes a 2.00mm pitch for compact circuit board layout
- Designed for surface mount technology (SMT) assembly
- Features a side entry orientation for specific housing integration
Headers, Male Pins Applications
- Wire-to-board interconnections in electronic assemblies
- Surface mount circuit board integration
- Compact device internal wiring harnesses
Headers, Male Pins Procurement Notes
Verify the exact pin count and pitch specifications against the target design requirements before procurement. Confirm that the side entry orientation aligns with the mechanical constraints of the intended housing or PCB footprint. Ensure compatibility with standard SMT reflow profiles during the manufacturing process.
Headers, Male Pins Selection Notes
Select this component when a low-profile, high-density connection is required for wire-to-board applications. The 2.00mm pitch allows for tighter spacing compared to traditional headers. Consider the side entry feature if space limitations prevent top-entry mating. Validate that the current rating meets the system's power distribution needs.
Headers, Male Pins Part Context
This part belongs to the EDAC 140 Series, which focuses on small-pitch connectors for modern electronics. The series offers various configurations to support diverse mounting styles and contact counts. It serves as a reliable solution for connecting flexible flat cables or individual wires to rigid printed circuit boards in consumer and industrial devices.
Headers, Male Pins Replacement Considerations
Check for functional equivalents with identical 2.00mm pitch and 12-position count. Verify that any substitute maintains the same SMT side entry profile and pin configuration to ensure mechanical fit.
