1414070

Overview

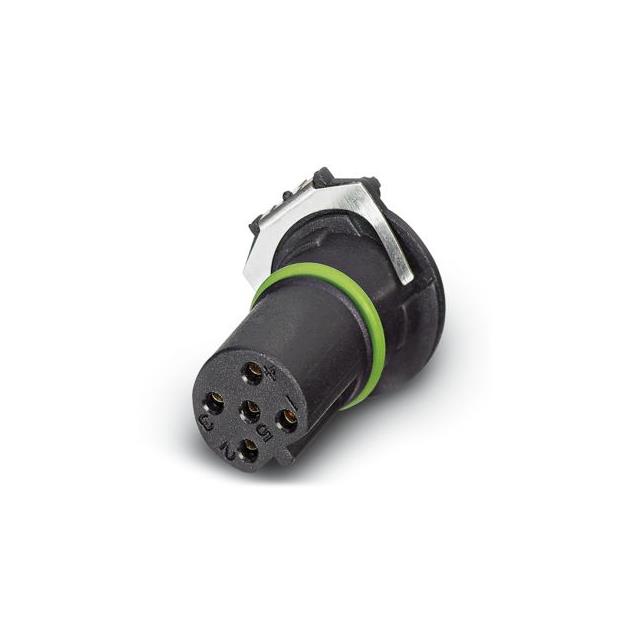

The Phoenix Contact part number 1414070 is a contact carrier designed for M12 circular metric connectors. It features a straight orientation with five positions and utilizes socket contacts. The component employs a B-coding scheme to ensure correct mating compatibility within industrial automation systems. Electrical connection to the printed circuit board is achieved through Through-Hole Reflow (THR) soldering technology, which supports automated assembly processes. The unit is constructed to meet lead-free standards as of Q3 2026.

Feature Summary

• Provides a robust mechanical interface for M12 circular connector integration onto PCBs
• Utilizes THR solder connection technology for reliable electrical termination
• Incorporates B-coding to prevent incorrect mating with incompatible connector types

Applications

• Industrial automation control panels requiring M12 signal transmission
• Sensor and actuator wiring interfaces in harsh environments
• Printed circuit board assemblies for heavy-duty connectivity solutions

Procurement Notes

Verify the specific coding configuration matches the system requirements before procurement. Confirm that the manufacturing date aligns with the Q3 2026 lead-free compliance transition if environmental regulations are critical. Ensure the PCB layout accommodates the THR solder pad dimensions specified in the official datasheet to guarantee proper mechanical retention and electrical conductivity during reflow soldering.

Selection Notes

Select this component when a straight-mount solution for M12 B-coded connections is required on a PCB. The THR technology offers advantages over wave soldering for high-reliability applications. Consider the five-position capacity against the total I/O requirements of the design. Verify that the socket contact type matches the male pins of the mating cable or connector assembly to ensure functional compatibility.

Part Context

This contact carrier belongs to the Phoenix Contact circular metric connector family, specifically engineered for industrial Ethernet and fieldbus applications. It serves as an interface between the rigid PCB environment and flexible cabling systems. The product line emphasizes durability and standardized connectivity for machinery and process control equipment.

Replacement Considerations

Phoenix Contact lists alternative products compliant with RoHS II without certain substances. Verify cross-reference availability through official distributor channels to ensure identical pinout and mechanical specifications.
