1414072

Overview

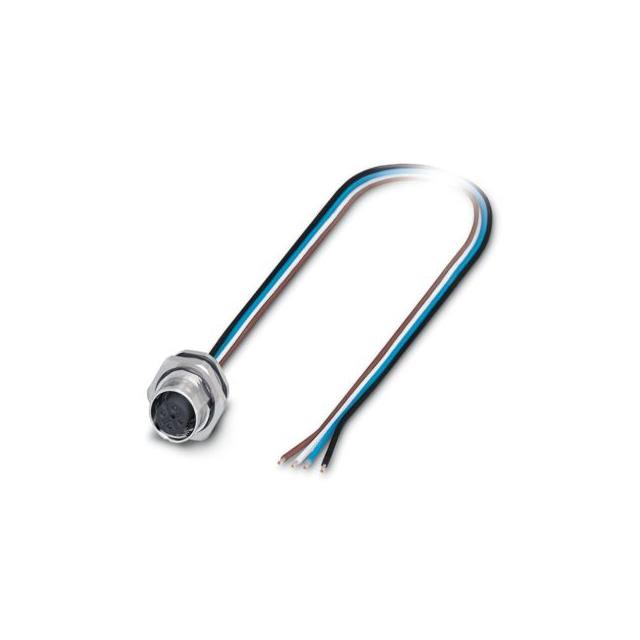

Phoenix Contact part number 1414072 is a flush-type device connector, specifically the SACC-DSI-M12FS-4P-M16/1,5 model. It features a rear mounting design intended for sensors and actuators. The connector accommodates universal four-position sockets with M12 straight coding. It includes a built-in mounting female interface and utilizes SPEEDCON M12 technology. The assembly is unshielded and has a cable length of 1.5 meters (approximately 4.92 feet). The housing material is specified as plastic, and it employs a secure threaded design for installation.

Feature Summary

• Flush-type connector design with built-in mounting female for direct sensor or actuator integration
• Rear mounting receptacle configuration utilizing SPEEDCON M12 technology
• Four-position socket accommodation with M12 straight coding
• Secure threaded connection mechanism within a plastic housing

Applications

• Sensor connections in industrial automation systems
• Actuator wiring interfaces
• Rear-mounting applications requiring flush installation
• Universal socket integration for four-position signal transmission

Procurement Notes

Verify the specific ordering suffix to confirm the exact cable length and coding variant, as Phoenix Contact uses detailed suffixes to define physical attributes. Ensure compatibility with the mating male connector's coding scheme to prevent mechanical mismatch. Confirm that the unshielded construction meets the electromagnetic interference requirements of the target application environment before procurement.

Selection Notes

Select this component when a flush-mounted, rear-accessible connection is required for M12 sensors or actuators. The four-pole configuration supports standard digital I/O or power signals depending on the circuit design. Consider the 1.5-meter fixed cable length for routing constraints. Verify that the plastic housing material is suitable for the environmental conditions, such as temperature ranges and chemical exposure, present in the installation site.

Part Context

This part belongs to the Phoenix Contact SACC series of circular cable assemblies. The SACC-DSI designation indicates a specific variant designed for flush mounting directly onto devices. The M12 interface is a standard industrial connector type widely used for fieldbus and sensor networks. This particular item represents a pre-assembled solution rather than a standalone connector component.

Replacement Considerations

Direct substitutes must match the M12 female, 4-pin, flush-mount specification. Verify that any alternative maintains the same SPEEDCON locking mechanism and rear-mounting footprint. Cross-referencing with Phoenix Contact's current catalog is recommended to identify updated part numbers or equivalent models from other manufacturers offering identical mechanical and electrical interfaces.
