1417490

Overview

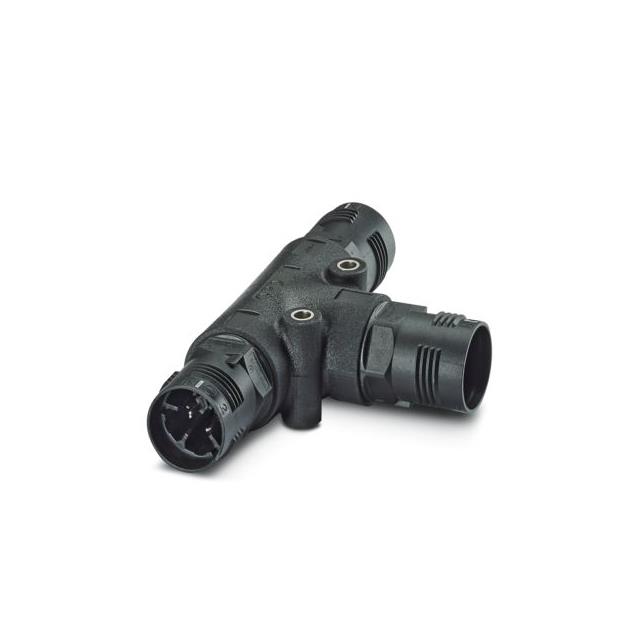

The Phoenix Contact 1417490 is a QPD T 4PE6,0 BK T-distributor designed for PA applications. It features QUICKON fast connection technology with a capacity of 4+PE poles. The device supports wire cross-sections from 2.5 mm² to 6 mm² and operates at a maximum voltage of 690 V with a rated current of 40 A. It is housed in black casing without QUICKON nuts.

Feature Summary

• Utilizes QUICKON fast connection technology for rapid installation
• Provides T-type distribution for 4 signal lines plus protective earth
• Supports wire cross-sections ranging from 2.5 mm² to 6 mm²

Applications

• Industrial automation signal distribution
• Protection and automation (PA) system wiring
• Panel building for quick connection setups

Procurement Notes

Verify the specific QUICKON connection requirement against existing cabling infrastructure. Confirm that the 40 A current rating and 690 V voltage limits align with the circuit design. Ensure the absence of included QUICKON nuts does not conflict with assembly specifications. Cross-reference the 2.5-6 mm² wire range with available cable gauges to ensure compatibility.

Selection Notes

Select this component when QUICKON fast connection is preferred over screw terminals for speed. The 4+PE configuration suits systems requiring dedicated protective earth distribution alongside four signal lines. Consider the 2.5-6 mm² wire range for standard industrial cabling needs. Verify space constraints within the enclosure for the T-distributor form factor.

Part Context

This part belongs to the Phoenix Contact QPD product family, specifically categorized as a T-distributor. It is designed for PA (Protection, Automation) applications. The model number 1417490 corresponds to the QPD T 4PE6,0 BK variant, indicating its specific pole count and color coding.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
