Overview

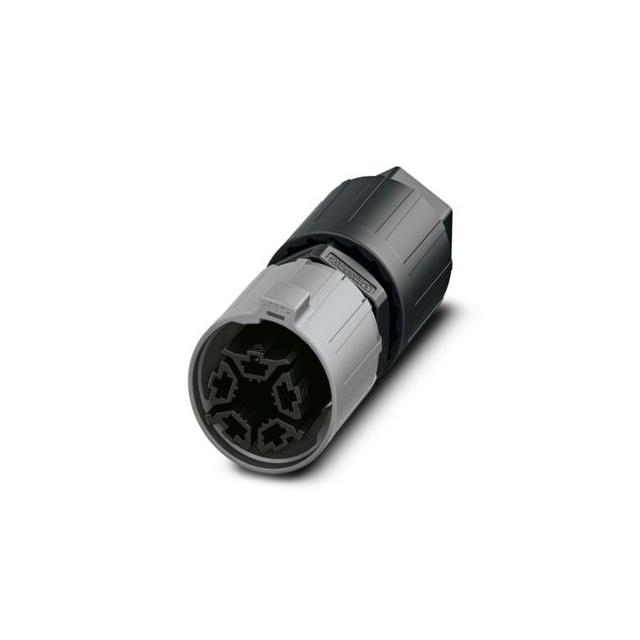

Phoenix Contact part number 1417714 is a circular metric connector from the QPD series, specifically designated as QPD P 4PE6,0 9-14 BKBK. It features a panel mount installation type with wire lead connections. The connector supports 4 positions plus protective earth (PE), accommodating cable cross-sections between 2.5 mm² and 6 mm². Rated for 690 V and 40 A, it utilizes QUICKON push-in connection technology for rapid termination without stripping. The housing is constructed from black polyamide (PA) with silver-plated copper contacts. Designed for cables with an outer diameter of 9 mm to 14 mm, it offers robust environmental protection suitable for demanding industrial applications.

Feature Summary

• Utilizes QUICKON push-in connection technology enabling rapid termination without wire stripping
• Constructed with silver-plated copper contacts housed in black polyamide (PA)
• Supports 4 positions plus protective earth (PE) for versatile circuit integration
• Accommodates cable cross-sections ranging from 2.5 mm² to 6 mm²

Applications

• Industrial automation control panels
• Machine tool electrical wiring
• Process instrumentation connections
• Heavy-duty sensor and actuator interfaces

Procurement Notes

Verify the specific QUICKON contact carrier material and insulating properties against current Phoenix Contact compliance documentation before finalizing procurement. Ensure that the selected cable outer diameter falls strictly within the 9 mm to 14 mm range to guarantee proper sealing and mechanical retention. Confirm that the application voltage does not exceed the 690 V rating and that surge voltage requirements are met by the component's 8 kV rating. Cross-reference the latest datasheet to confirm availability status, as lifecycle information may vary by region.

Selection Notes

Select this component when a reliable, tool-free connection method is required for power and signal lines in industrial environments. The 4+PE configuration makes it suitable for systems requiring dedicated grounding alongside multiple signal or power paths. Consider the IP rating and temperature range (-40°C to +80°C) to ensure compatibility with the operating environment. Verify that the panel cutout dimensions align with the QPD series mounting specifications to ensure proper fit during assembly.

Part Context

The 1417714 belongs to the Phoenix Contact QPD series, which is designed for high-current and high-voltage applications in harsh industrial settings. This series emphasizes durability and ease of installation through its QUICKON technology. The QPD connectors are widely used in sectors such as manufacturing, energy, and transportation where reliable electrical connections under vibration and varying temperatures are critical. The specific model integrates standard safety features including protective earth connectivity.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Phoenix Contact technical support for compatible alternatives if this obsolete or limited-stock item is unavailable.
