1418637

Overview

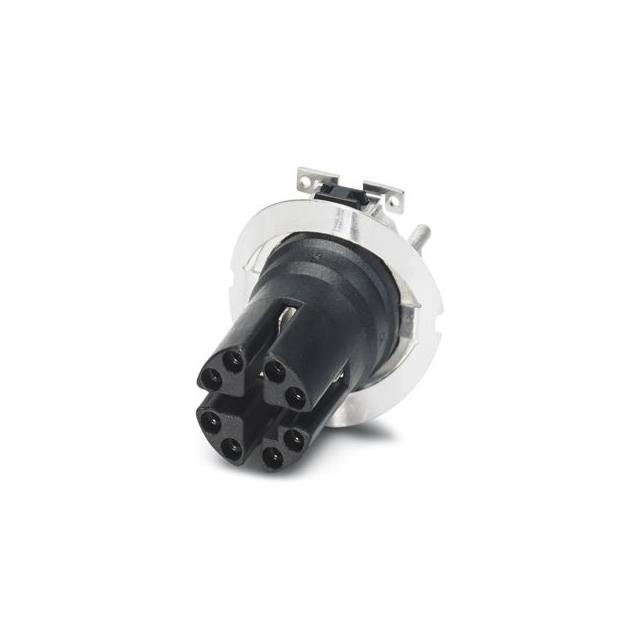

Phoenix Contact part number 1418637 is an M12 sensor connector contact insert sample set. It features a straight, surface-mount (SMD) socket configuration with eight positions. The component operates within a voltage range of 50V and supports a current rating of 500mA. Constructed from polyamide (PA), the housing provides durability for industrial environments. The product is designed for shielded applications and utilizes lead-free materials in compliance with environmental standards.

Feature Summary

• Straight SMD socket design for automated surface mounting
• Shielded construction to maintain signal integrity
• Lead-free material composition for environmental compliance

Applications

• Industrial sensor integration
• Automated assembly line control systems
• M12 circular connector mating assemblies

Procurement Notes

Verify that the specific order corresponds to the sample set designation rather than individual bulk units. Confirm the SMD termination style matches the target PCB footprint requirements. Ensure compatibility with the intended M12 mating connectors for proper shielding continuity.

Selection Notes

Select this component when a pre-assembled sample kit of shielded M12 sockets is required for prototyping or testing. The straight orientation suits low-profile board designs. Verify that the 50V/500mA ratings meet the specific circuit load requirements before implementation.

Part Context

This item belongs to the Phoenix Contact M12 circular connector accessory family. It serves as a modular insert for building custom cable assemblies or panel-mounted interfaces. The part functions as a sample set, providing multiple units for evaluation purposes rather than single discrete components.

Replacement Considerations

Direct substitutes include other Phoenix Contact M12 SMD socket inserts with identical pin counts and shielding configurations. Verify mechanical dimensions and thermal characteristics match the original design constraints.
