1419424

Overview

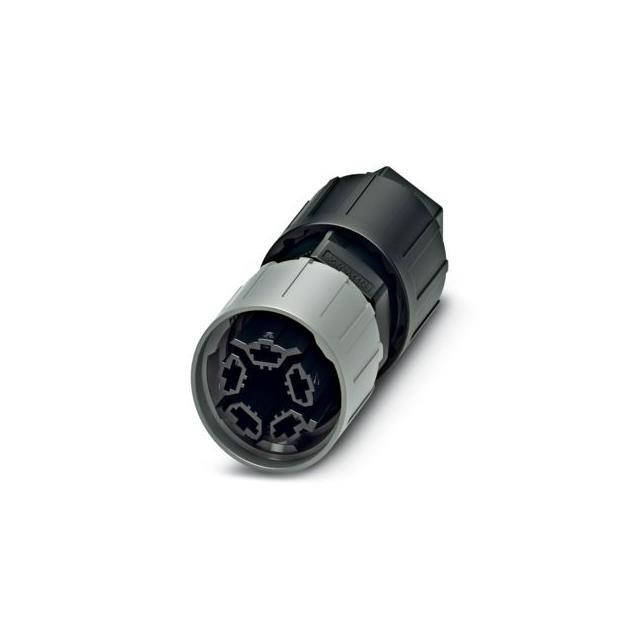

Phoenix Contact part number 1419424 is a QPD P 3X1,5 4-9 BK installation connector. It features QUICKON connection technology for conductors with flexible cross-sections ranging from 0.5 mm² to 1.5 mm². The rated voltage is 690 V and the rated current is 17.5 A. The device has a rated surge voltage of 8 kV (II/2). Constructed from black PA material, it supports an external cable diameter of 5 mm to 7 mm. It includes a QUICKON nut and anti-mating coding strip.

Feature Summary

• Utilizes QUICKON connection method for rapid conductor termination without stripping
• Incorporates anti-mating coding strip to prevent incorrect insertion
• Constructed from durable black polyamide (PA) housing material

Applications

• Industrial sensor and actuator cabling
• Control cabinet wiring installations
• Electrical equipment signal transmission

Procurement Notes

Verify the specific suffix 'BK' confirms the black color variant. Ensure the required conductor cross-section falls within the 0.5 mm² to 1.5 mm² range. Confirm the cable outer diameter matches the 5 mm to 7 mm specification. Check for compatibility with existing QUICKON mating connectors in the system design.

Selection Notes

Select this component when a compact installation connector with QUICKON termination is required. It is suitable for applications needing 3 positions with 1.5 mm² capacity. Consider the 8 kV surge rating for protection needs. Verify that the PA material meets environmental requirements for the installation site.

Part Context

This component belongs to the QPD series of installation connectors from Phoenix Contact. It is designed for DIN rail or panel mounting in electrical enclosures. The series provides reliable connections for control and automation systems. The QUICKON technology allows for tool-free or simple tool-assisted wire termination.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
