Overview

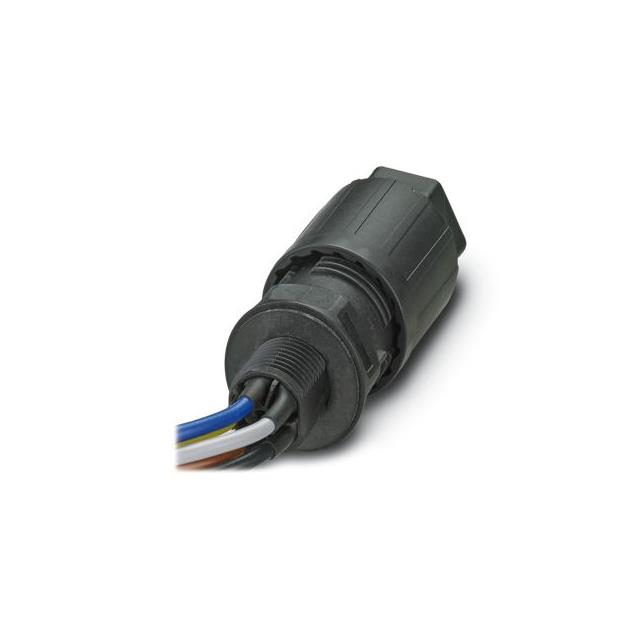

The Phoenix Contact 1419636 is a QPD series panel feed-through connector designed for single-wire welded-on or IDC connections. It features a 4+PE configuration with five positions, utilizing an M20 thread size. The unit supports wire cross-sections from 1 mm² to 2.5 mm² and operates at voltages up to 690 V with a current rating of 17.5 A. Constructed from PA material, it accommodates external cable diameters between 6 mm and 11 mm.

Feature Summary

• Supports single-wire welded-on and IDC connection methods for secure termination
• Provides four signal positions plus one protective earth position
• Designed for panel mounting with M20 threaded interface
• Constructed from PA material for durability

Applications

• Industrial control panel wiring
• Electrical cabinet feed-throughs
• Machine tool power distribution

Procurement Notes

Verify the specific ordering suffix matches the required cable diameter range and connection type. Confirm that the M20 thread size aligns with panel cutout specifications. Ensure compatibility with the intended wire gauge (1-2.5 mm²) and voltage class (690 V). Cross-reference the product family QPD for accessory availability.

Selection Notes

Select this component when a robust panel feed-through solution is required for multiple conductors and ground. The M20 entry point suits standard industrial cabling. Consider the welded-on or IDC termination method based on assembly tools and long-term vibration requirements. Verify environmental conditions against the operating temperature range.

Part Context

This part belongs to the Phoenix Contact QPD product family, which specializes in circular metric connectors for panel applications. The QPD series offers various configurations for different numbers of positions and thread sizes, providing standardized solutions for industrial electrical installations.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
