1422990

Overview

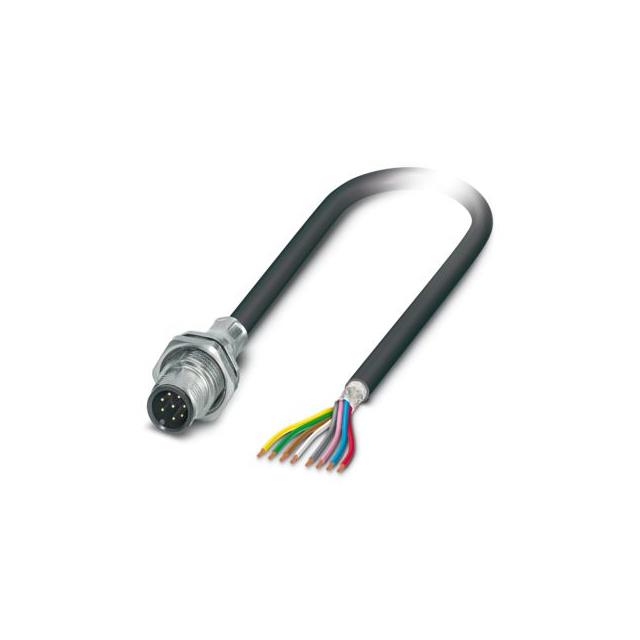

Phoenix Contact part number 1422990 is a shielded circular cable assembly designed for industrial Ethernet applications. It features an M12 SPEEDCON connector with A-coding and eight positions, supporting data transmission speeds up to 1 Gbps compliant with CAT5 standards. The device utilizes a rear mounting configuration with pin contacts and a straight orientation. Constructed with PUR insulation in water blue RAL 5021, the cable measures 0.4 meters in length. This assembly integrates robust shielding to ensure signal integrity in demanding environments.

Feature Summary

• Rear mounting design for secure device integration
• M12 SPEEDCON connector with A-coding for reliable connectivity
• Shielded construction ensuring electromagnetic compatibility
• PUR jacket material providing environmental resistance

Applications

• Industrial Ethernet network connections
• Sensor and actuator cabling systems
• Automation control panel wiring
• Machine tool communication links

Procurement Notes

Verify the specific ordering suffix and technical documentation before procurement. Confirm that the M12 A-coded configuration matches the system requirements. Ensure the rear mounting style aligns with the installation space constraints. Check for any recent product change notifications or compliance updates relevant to the manufacturing batch.

Selection Notes

Select this component when a shielded M12 A-coded solution is required for 1 Gbps Ethernet applications. The rear mounting feature simplifies installation in confined spaces compared to front-mount alternatives. Consider the PUR material properties for durability against oils and mechanical stress. Verify that the 0.4-meter length meets the distance requirements between the device and the network node.

Part Context

This part belongs to Phoenix Contact's SACCBP series of sensor and actuator cables. The series provides standardized solutions for industrial automation networking. The M12 SPEEDCON interface offers quick connection capabilities. The product line emphasizes reliability and ease of installation in harsh industrial environments.

Replacement Considerations

Check for direct substitutes within the same M12 A-coded family. Verify compatibility of mating connectors and cable lengths. Ensure equivalent shielding and material specifications are maintained for environmental resilience.
