1425242

Overview

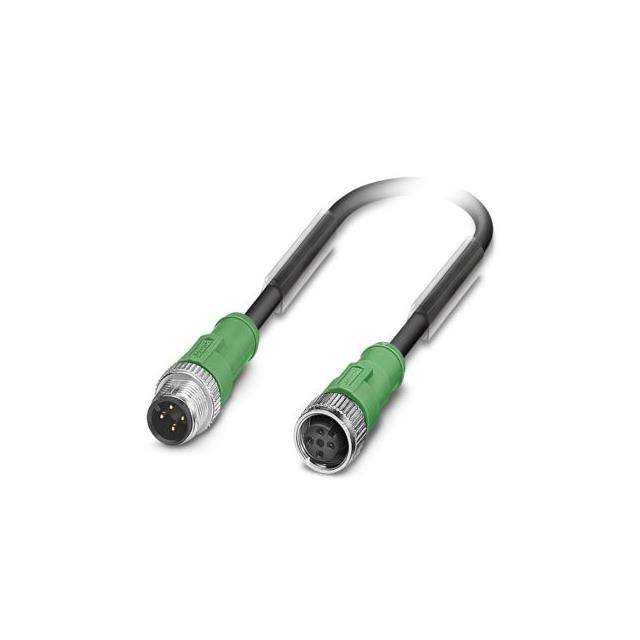

The Phoenix Contact part number 1425242, designated as SAC-4P-M12MS/25,0-500/M12FS, is a sensor and actuator cable assembly. It features a four-position configuration with PVC insulation in gray RAL 7001. The cable has a straight M12 plug (coding A) on one end and a straight M12 socket (coding A) on the other. The total cable length is specified as 25 meters.

Feature Summary

• Four-position signal transmission capability for industrial automation
• Straight M12 connector coding A on both plug and socket ends
• Durable PVC jacket construction in standard gray color

Applications

• Industrial sensor connections
• Actuator interface wiring
• Automation control system cabling

Procurement Notes

Verify the specific model designation SAC-4P-M12MS/25,0-500/M12FS against project requirements to ensure compatibility with existing M12 coding standards. Confirm that the 25-meter length meets the installation distance needs. Check for any special handling or return policies associated with this specific product code before finalizing orders.

Selection Notes

Select this component when a fixed-length 25-meter connection between an M12 device and a controller is required. Ensure the application environment is compatible with PVC material properties. Verify that the straight-to-straight orientation fits the spatial constraints of the installation panel or enclosure layout.

Part Context

This item belongs to the Phoenix Contact SAC-4P series, which provides pre-assembled sensor and actuator cables. These components are designed for reliable signal transmission in industrial settings. The series offers various lengths and connector configurations to suit different automation infrastructure needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify pinout compatibility and mechanical dimensions if considering alternative manufacturers.

FAQ

What is the connector coding for this cable?

Both the M12 plug and the M12 socket feature coding A.

Is the cable shielded?

The provided documentation does not specify shielding details for this part number.
