1425614

Overview

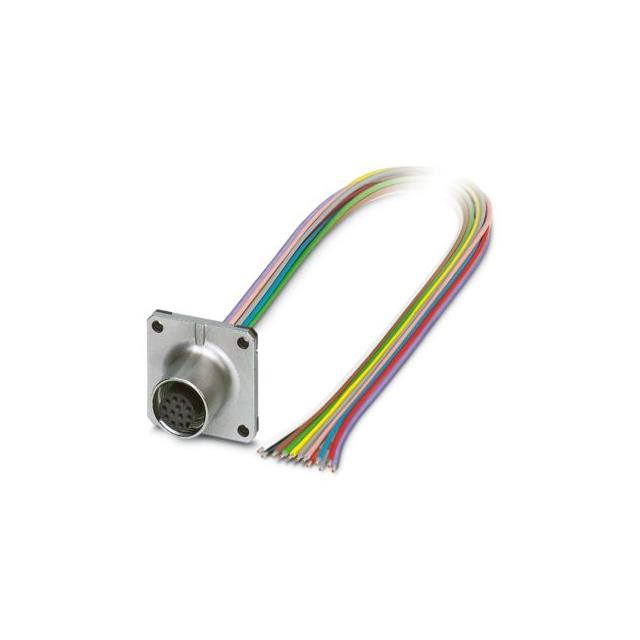

Phoenix Contact part number 1425614 is a device connector from the SACC-SQ-FS series, designed for front mounting applications. This circular cable assembly features a straight socket configuration with 12 positions and A coding. It utilizes individual wires with a cross-section of 0.08 mm² and has a cable length of 0.5 meters (1.64 feet). The connector is constructed with PVC insulation and is unshielded. It is intended for signal transmission in industrial environments.

Feature Summary

• Front mounting design with square flange for secure panel installation
• Straight socket orientation with A coding to prevent misalignment
• Pre-assembled cable with individual wire termination at the free end

Applications

• Industrial control cabinet wiring
• Sensor and actuator connections
• Automation system signal distribution

Procurement Notes

Verify that the required coding matches application needs, as A coding is specific. Confirm the 12-position requirement aligns with system I/O counts. Ensure the 0.5-meter cable length suits the installation distance. Check that the unshielded nature is acceptable for the electromagnetic environment. Validate the 0.08 mm² wire gauge compatibility with connected devices.

Selection Notes

Select this model when a pre-wired solution for front-mounted panels is required. The 12-position count supports moderate signal density. The straight design simplifies routing in confined spaces. Consider the fixed cable length during layout planning. The square flange provides robust mechanical stability compared to round flanges.

Part Context

This component belongs to Phoenix Contact's SACC-SQ-FS series of device connectors. These are circular cable assemblies specifically engineered for device-side connections. The series offers various position counts and coding options to accommodate different signal requirements in automation infrastructure.

FAQ

What is the shielding status of this connector?

The Phoenix Contact 1425614 is an unshielded circular cable assembly.

Does this connector support front mounting?

Yes, it is explicitly designed for front mounting with a square flange.
