Overview

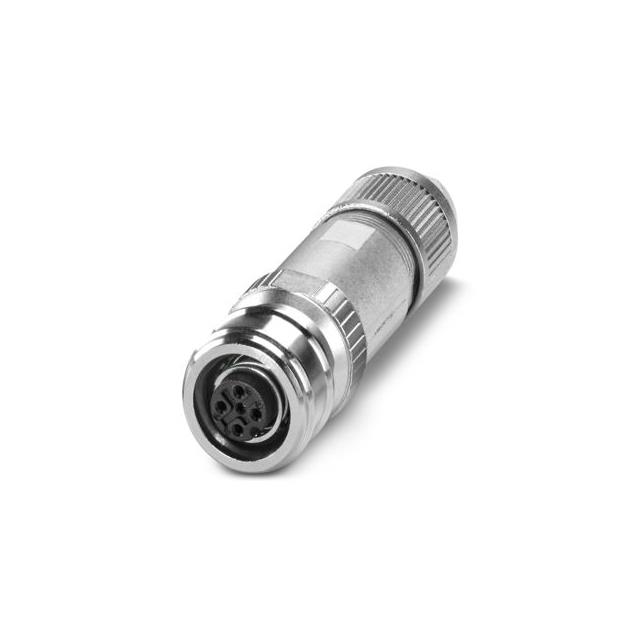

Phoenix Contact part number 1438169 is a universal circular connector assembly belonging to the SACC series. It features a 4-position configuration with female socket contacts designed for M12 Push-Pull interfaces. The connector utilizes an A coding scheme and employs a push-lock spring connection mechanism for secure attachment. Constructed with zinc die-cast knurl material that is nickel-plated, it supports cable diameters ranging from 4 mm to 8 mm.

Feature Summary

• Features a shielded socket design for signal integrity
• Utilizes a push-lock spring connection system
• Constructed with nickel-plated zinc die-cast housing

Applications

• Industrial automation control systems
• Sensor and actuator network connections
• General purpose industrial equipment interfacing

Procurement Notes

Verify the specific suffix SH against official Phoenix Contact documentation to confirm exact plating and environmental ratings. Ensure compatibility with M12 Push-Pull mating counterparts. Confirm RoHS compliance status through current datasheets as regulatory requirements may evolve. Cross-reference the full part string SACC-P12FS-4PL-CM SH to avoid ordering errors due to similar family members.

Selection Notes

Select this component when a shielded, straight M12 socket with push-lock functionality is required. The A coding restricts usage to specific pinout configurations; verify pin assignments match the circuit design. The 4-position count limits connectivity options compared to higher-pin variants. Ensure the cable diameter falls within the specified 4 mm to 8 mm range for proper strain relief and sealing performance.

Part Context

This part belongs to the Phoenix Contact SACC series of universal connectors, which are widely used in industrial environments. The SACC line typically offers various contact positions and locking mechanisms. This specific model represents the 4-position variant with push-lock technology, distinguishing it from screw or snap-lock versions within the same product family.

Replacement Considerations

Direct substitutes must match the M12 Push-Pull interface, 4-position count, A coding, and shielded socket configuration. Verify that any alternative maintains the push-lock spring connection mechanism and compatible cable diameter range. Check for identical housing material and plating specifications to ensure mechanical and corrosion resistance equivalence.
