145089-1

Edgeboard Connectors Overview

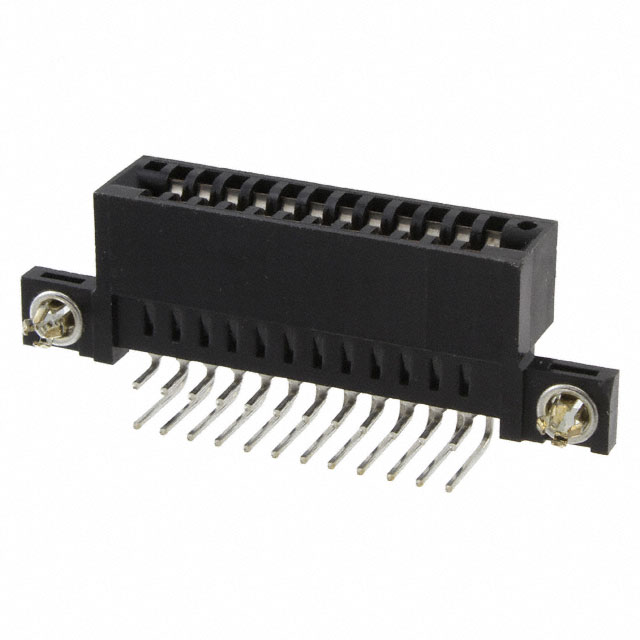

The TE Connectivity AMP Connectors part number 145089-1 is a Standard Card Edge connector designed for dual-edge circuit card applications. It features a 24-position configuration with female contacts and a 0.100-inch (2.54mm) pitch. The component utilizes solder termination methods and operates within a temperature range of -55°C to 85°C. The housing is brown, and the contacts are gold-plated. This connector belongs to the Standard Edge II series and is currently classified as obsolete in the manufacturer's product lifecycle.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure mating with circuit cards
• Solder termination method ensures stable electrical connections
• Gold-plated contacts provide reliable conductivity and corrosion resistance

Edgeboard Connectors Applications

• Computing systems requiring dual-edge board interfaces
• Electronic equipment utilizing standard card edge modules
• Industrial control systems needing robust signal transmission

Edgeboard Connectors Procurement Notes

This component is officially listed as obsolete by the manufacturer. Procurement should focus on verifying stock availability through authorized distributors or exploring qualified replacement parts. Ensure that any sourced units match the original specifications for pitch, position count, and termination type to maintain system compatibility.

Edgeboard Connectors Selection Notes

Select this connector only if the design requires a 24-position dual-edge interface with a 0.100-inch pitch. Verify that the application environment falls within the specified operating temperature range of -55°C to 85°C. Consider the obsolete status when planning long-term production runs, as supply continuity may be limited.

Edgeboard Connectors Part Context

Part of the Standard Edge II series from TE Connectivity AMP Connectors, known for reliable interconnect solutions. The series supports various configurations for data and signal transmission in demanding environments. This specific model represents a legacy component previously used in computing and industrial electronics before being phased out.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not explicitly documented in the provided source material. Users should consult official TE Connectivity documentation or authorized distributor databases for current equivalent recommendations due to the obsolete status.
