145090-6

Edgeboard Connectors Overview

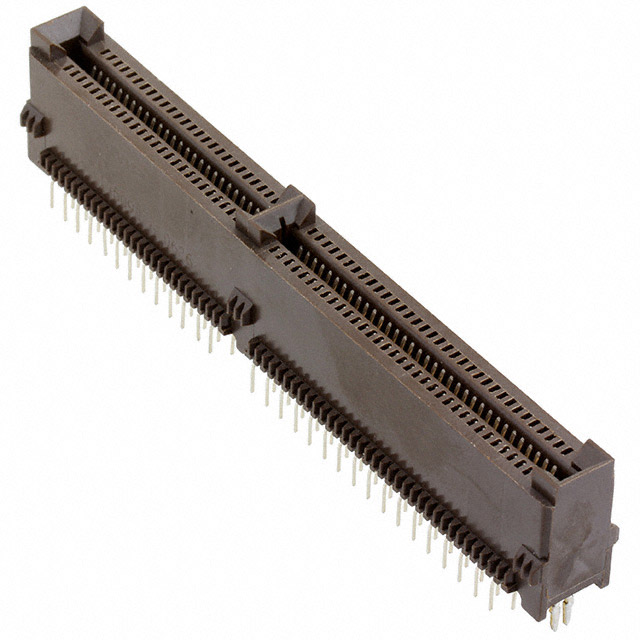

The TE Connectivity AMP Connectors part number 145090-6 is a standard card edge connector designed for dual-edge card assemblies. It features 120 contact positions arranged in two rows with a 0.05-inch (1.27mm) pitch. The connector utilizes a solder terminal type and includes a board lock feature for secure mounting. The insulator material is brown, and the contacts are gold-plated to ensure reliable electrical performance.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design for interfacing with card assemblies
• Board lock mechanism for secure PCB mounting
• Gold-plated contacts for enhanced conductivity

Edgeboard Connectors Applications

• Industrial control systems
• Electronic card assembly interfaces
• Standard card edge connection applications

Edgeboard Connectors Procurement Notes

Verify the specific pin count and row configuration against the datasheet, as variations exist within the 145090 series. Confirm that the gold contact finish and board lock feature meet the mechanical requirements of the target application before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required. Ensure the mating card thickness aligns with the connector specifications. Verify that the solder terminal style is compatible with the intended PCB manufacturing process.

Edgeboard Connectors Part Context

This component belongs to the standard card edge connector family from TE Connectivity AMP Connectors. It is engineered for robust connections in electronic systems requiring high pin counts and reliable signal transmission through dual-edge card interfaces.

Edgeboard Connectors Replacement Considerations

Check for direct substitutes within the same series or comparable dual-edge connectors with matching pitch and contact count. Ensure any replacement maintains the board lock feature and gold contact finish for equivalent performance.
