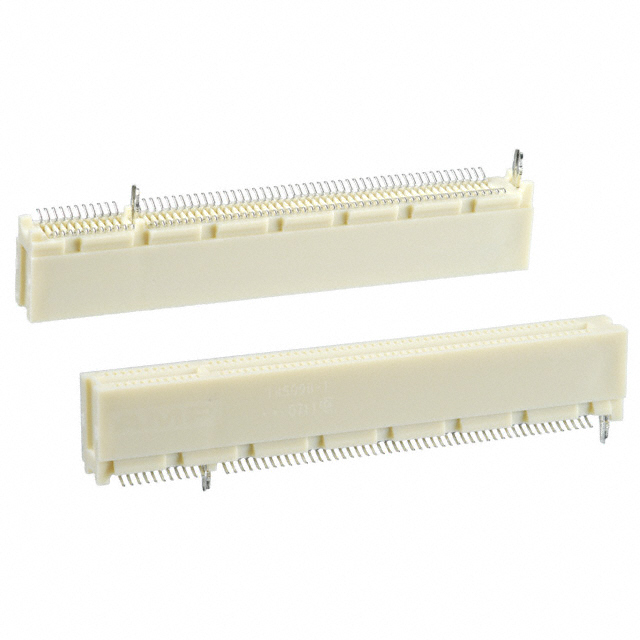

145098-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI CARDEDGE FML 120P 0.050. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 145098-1
- Description：CONN PCI CARDEDGE FML 120P 0.050
- Series：Standard Edge .050
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Card Type：PCI™
- Gender：Female
- Number of Positions/Bay/Row：11; 49
- Number of Positions：120
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.050" (1.27mm)
- Read Out：Dual
- Features：Board Lock
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：White
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 145098-1
Edgeboard Connectors Overview
The 145098-1 is a PCI Express/PCI connector manufactured by TE Connectivity AMP Connectors. It features a dual-row surface mount design with 60 positions. The connector utilizes a 0.050-inch (1.27 mm) pitch and gold-plated contacts to ensure reliable signal transmission. Designed for high-speed data applications, it supports an impedance rating of 85 ohms and offers a data transfer speed capability of 32 GT/s. The component is classified as obsolete in the current product lifecycle.
Edgeboard Connectors Feature Summary
- Dual-row surface mount architecture for compact PCB integration
- Gold contact plating for enhanced conductivity and corrosion resistance
- Optimized for 85-ohm impedance matching in high-speed digital signals
Edgeboard Connectors Applications
- PCI Express peripheral interface modules
- Standard PCI expansion card edge connectors
- High-speed data acquisition hardware systems
Edgeboard Connectors Procurement Notes
This component is listed as obsolete. Verify availability through secondary market distributors or authorized surplus suppliers. Confirm lot dates and storage conditions carefully due to potential shelf-life limitations associated with discontinued electronic components.
Edgeboard Connectors Selection Notes
Engineers should evaluate alternative active series from TE Connectivity that maintain compatible 0.050-inch pitch specifications. Ensure new selections support the required 85-ohm impedance and 32 GT/s bandwidth. Validate mechanical footprint compatibility during migration planning.
Edgeboard Connectors Part Context
Part of the AMP ACES family within the TE Connectivity portfolio. This series focuses on standard edge connector solutions for legacy and modern computing architectures. The specific model serves as a critical interconnect for motherboard-to-card communication channels.
Edgeboard Connectors Replacement Considerations
No direct public substitute part numbers are confirmed. Review TE Connectivity's current PCI Express connector lineup for functional equivalents with updated lifecycle status.
