145154-4

Edgeboard Connectors Overview

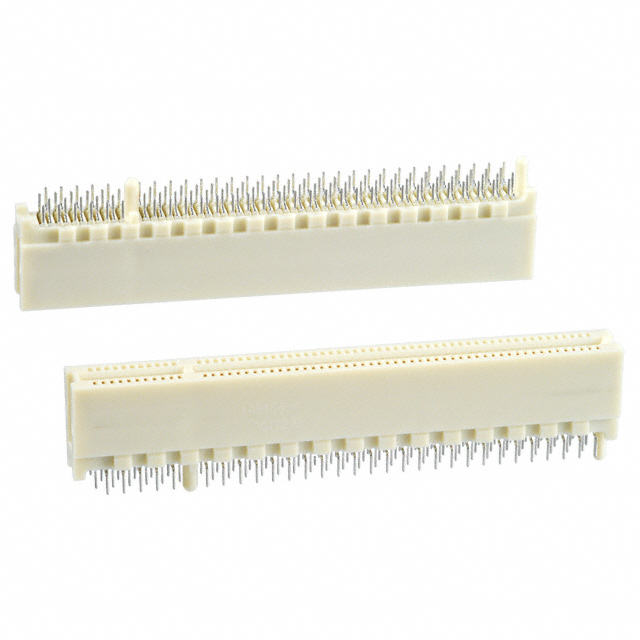

The TE Connectivity AMP Connectors 145154-4 is a dual-row PCI Express connector designed for high-speed data transmission. It features a 60-position configuration with a 1.0mm pitch, supporting speeds up to 32GT/s and an impedance rating of 85Ω. The component utilizes phosphor bronze contacts and through-hole mounting with staggered solder termination. This design incorporates board guide features to ensure precise alignment during installation.

Edgeboard Connectors Feature Summary

• Supports high-speed data transfer rates up to 32GT/s
• Maintains 85Ω impedance rating for signal integrity
• Incorporates board guide features for secure alignment

Edgeboard Connectors Applications

• PCI Express interface connections
• High-speed data transmission systems
• Server and workstation motherboard interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to confirm exact pin count and termination style. Ensure compatibility with system impedance requirements before procurement. Confirm current availability status as supply conditions may vary.

Edgeboard Connectors Selection Notes

Select this component when designing for PCI Express applications requiring 32GT/s performance. Verify that the PCB layout supports the 1.0mm pitch and through-hole staggered termination. Ensure mechanical constraints allow for the required board guide integration.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors portfolio, specifically targeting high-density interconnect solutions. It is engineered to meet the rigorous demands of modern computing architectures requiring reliable high-bandwidth communication channels.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Do not assume cross-compatibility with generic connectors without verifying electrical and mechanical specifications.
