Edgeboard Connectors Overview

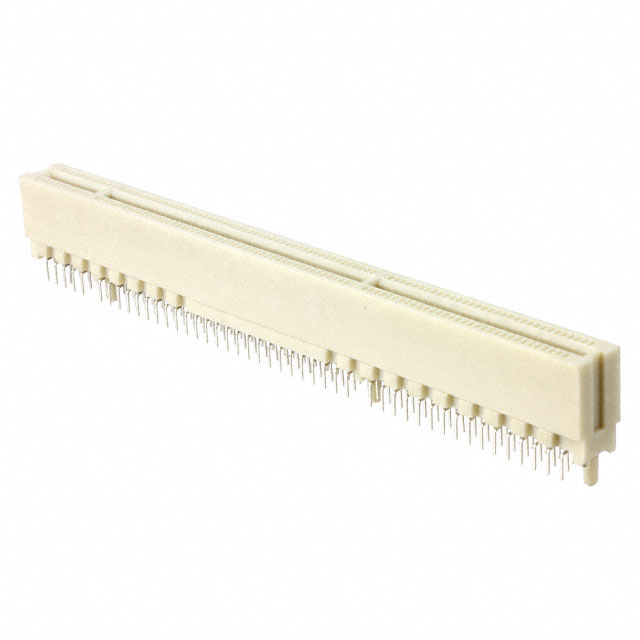

The TE Connectivity AMP Connectors part number 145165-8 is a PCI Express and PCI edgeboard connector designed for high-density data transmission. It features 184 positions arranged in a dual-row configuration with a 0.050-inch (1.27mm) centerline pitch. This female connector supports PCI 3.3V 64-bit standards, ensuring compatibility with legacy and specific expansion slot requirements. The contacts are gold-plated to provide reliable signal integrity and corrosion resistance over repeated mating cycles. Designed for through-hole mounting, the component utilizes a thermoplastic housing material that offers mechanical stability and thermal endurance during soldering processes and operational use.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration supporting 64-bit data paths
• Gold-plated phosphor bronze contacts for enhanced conductivity
• Thermoplastic housing providing structural rigidity and insulation
• Through-hole termination method for secure PCB attachment

Edgeboard Connectors Applications

• PCI Express expansion slots
• PCI 3.3V 64-bit interface systems
• Edgeboard interconnects
• Industrial computing hardware

Edgeboard Connectors Procurement Notes

Verify the exact position count and series designation against the manufacturer's current datasheet, as distributor listings may contain conflicting specifications regarding 92 versus 184 positions. Confirm RoHS compliance status directly with the supplier documentation. Ensure the ordering suffix matches the required termination style and plating thickness. Cross-reference the lifecycle status, as some sources indicate this specific part number may be obsolete or superseded by newer revisions within the same product family.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector is required for 64-bit PCI or PCI Express applications. The 0.050-inch pitch is suitable for standard board layouts requiring robust mechanical retention. Consider the through-hole mounting requirement for assembly capabilities. Verify that the 3.3V voltage rating aligns with the system's power distribution architecture. Evaluate the thermoplastic housing properties against environmental stress factors such as temperature extremes and chemical exposure during operation.

Edgeboard Connectors Part Context

This connector belongs to the TE Connectivity AMP Connectors portfolio, specifically categorized under PCI Express and PCI edgeboard connectors. It is engineered for use in computer systems and peripheral devices requiring standardized expansion interfaces. The component represents a solution for maintaining signal integrity in high-speed digital environments while adhering to established industry form factors for motherboard-to-card communication.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's official obsolescence notices or cross-reference guides for direct replacements if this part is discontinued.
