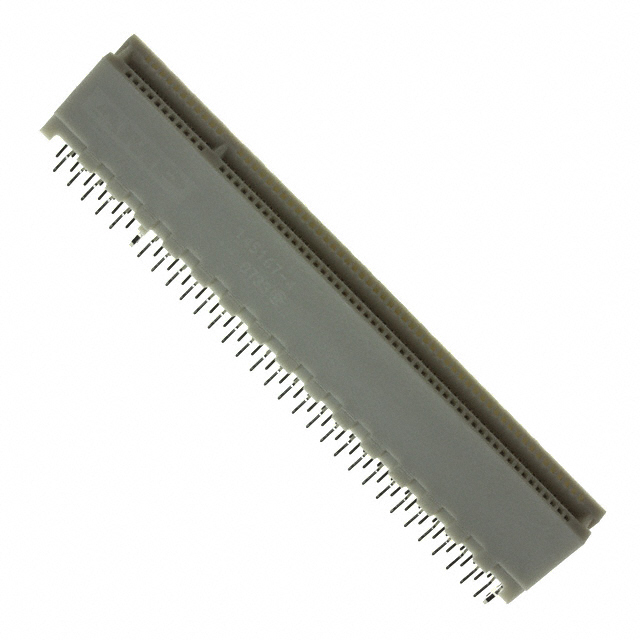

145167-4 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI CARDEDGE FML 120P 0.050. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 145167-4
- Description：CONN PCI CARDEDGE FML 120P 0.050
- Series：Standard Edge .050
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk,Tray
- Card Type：PCI™
- Gender：Female
- Number of Positions/Bay/Row：11; 49
- Number of Positions：120
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.050" (1.27mm)
- Read Out：Dual
- Features：Board Lock
- Mounting Type：Through Hole
- Termination：Solder, Staggered
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Natural
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 145167-4
Edgeboard Connectors Overview
The 145167-4 is a PCI Express and PCI connector manufactured by TE Connectivity AMP Connectors. It is a dual-sided card edge connector designed for high-density applications. The component features 120 positions with a female contact type, accommodating a .050 inch (1.27mm) centerline pitch. This specific part number is classified as obsolete within the manufacturer's lifecycle.
Edgeboard Connectors Feature Summary
- Dual-sided card edge design supporting PCI Express and PCI standards
- Female contact configuration for secure mating
- Board-lock feature integrated for mechanical retention
Edgeboard Connectors Applications
- PCI Express peripheral interface connections
- Standard PCI bus expansion slots
- High-density board-to-board interconnects requiring dual-sided access
Edgeboard Connectors Procurement Notes
This component is officially listed as obsolete by the manufacturer. Availability is restricted to remaining stock or third-party distributors. Verify end-of-life status and lead times carefully before integration into new designs due to discontinuation.
Edgeboard Connectors Selection Notes
Select this part only for maintenance of existing legacy systems utilizing standard PCI or early PCI Express architectures. For new designs, evaluate current-generation connectors with updated signal integrity specifications and longer availability lifecycles to ensure long-term supply chain stability.
Edgeboard Connectors Part Context
The 145167-4 belongs to the family of card edge connectors optimized for computing and communication equipment. It provides a reliable interface between the motherboard and expansion cards, serving as a critical link in data transmission pathways for industrial and commercial hardware platforms.
Edgeboard Connectors Replacement Considerations
- 145169-4
Edgeboard Connectors FAQ
What is the contact pitch of the 145167-4?
The connector utilizes a .050 inch (1.27mm) centerline pitch.
Does this connector include board-locking mechanisms?
Yes, the design incorporates board-lock features to assist with mechanical retention during insertion.
