145236-2

Edgeboard Connectors Overview

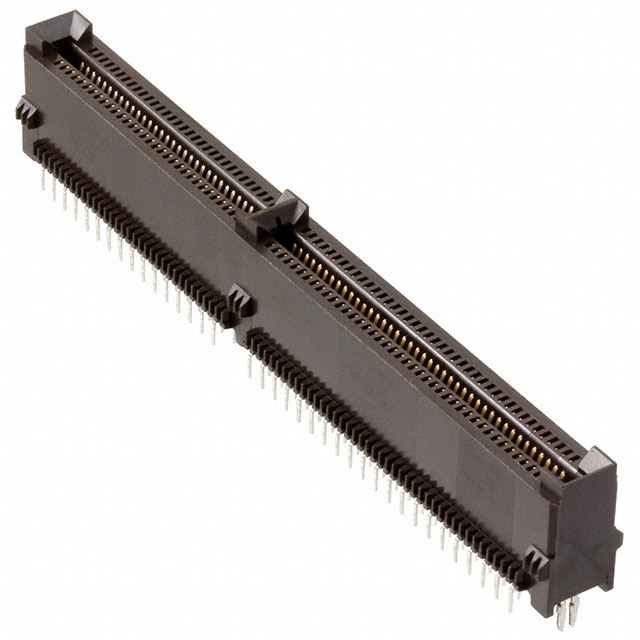

The TE Connectivity AMP Connectors part number 145236-2 is a dual female edge connector designed for high-density signal transmission. It features a 146-position configuration with a 0.050-inch (1.27mm) contact pitch, accommodating two rows of contacts. The component utilizes through-hole mounting with staggered solder termination to ensure reliable PCB attachment. Constructed with phosphor bronze contacts finished in gold plating, it provides durable electrical performance suitable for demanding industrial and commercial applications requiring robust interconnect solutions.

Edgeboard Connectors Feature Summary

• Dual female edge connector design for board-to-board or backplane integration
• Staggered through-hole solder termination ensures secure mechanical fixation
• Gold-plated phosphor bronze contacts provide corrosion resistance and stable conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring dense signal routing
• Commercial computing hardware and server backplanes
• Telecommunications infrastructure equipment
• Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with TE Connectivity before procurement. Confirm that the staggered solder termination aligns with your PCB fabrication capabilities. Ensure mating connectors match the 0.050-inch pitch and dual female configuration. Check for any recent product change notices affecting material composition or packaging specifications.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count interface with a 0.050-inch pitch is required. The dual female edge design suits applications where the connector mounts perpendicular to the mating board. Consider the staggered solder termination for improved mechanical stability during assembly. Verify that the gold contact finish meets the environmental requirements for the intended operating conditions.

Edgeboard Connectors Part Context

This part belongs to the broader AMP Connectors portfolio by TE Connectivity, specializing in high-reliability interconnect solutions. The 145236-2 model represents a standard edge connector variant within their catalog, focusing on density and durability. It complements other components in the series designed for complex electronic assemblies requiring precise signal integrity.

Edgeboard Connectors Replacement Considerations

No officially confirmed substitute part numbers are available in public documentation. Direct replacement requires matching the 146-position count, 0.050-inch pitch, dual female configuration, and staggered solder termination. Any alternative must meet identical mechanical and electrical specifications to ensure compatibility.
