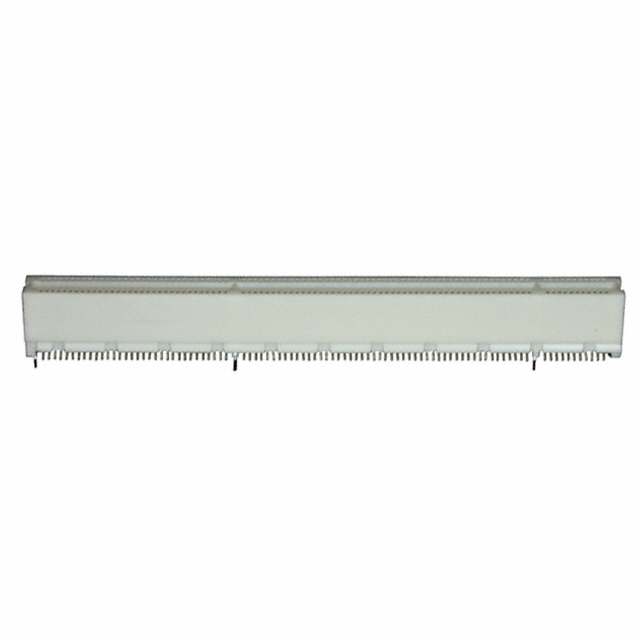

145246-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI CARDEDGE FML 184P 0.050. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 145246-1
- Description：CONN PCI CARDEDGE FML 184P 0.050
- Series：Standard Edge .050
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Card Type：PCI 3.3V 64 Bit
- Gender：Female
- Number of Positions/Bay/Row：11; 49; 32
- Number of Positions：184
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.050" (1.27mm)
- Read Out：Dual
- Features：Board Lock
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Natural
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 145246-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 145246-1 is a card edge connector designed for vertical mounting. It features a dual-sided configuration with 92 positions and a contact pitch of 0.050 inches (1.27mm). The connector utilizes a gold-plated contact surface to ensure reliable signal transmission. It is intended for board-to-board applications requiring high-density interconnects.
Edgeboard Connectors Feature Summary
- Vertical card edge design for standard PCB integration
- Dual-sided contact configuration for enhanced connectivity
- Gold-plated contacts for corrosion resistance
Edgeboard Connectors Applications
- High-density electronic assemblies
- Industrial control systems
- Telecommunications equipment
Edgeboard Connectors Procurement Notes
Verify the specific datasheet revision and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the vertical orientation and dual-sided specifications align precisely with your PCB layout requirements to ensure mechanical fit and electrical performance.
Edgeboard Connectors Selection Notes
Select this component when a vertical, dual-sided card edge interface with a 0.050-inch pitch is required. Ensure the mating card thickness and insertion force capabilities meet the system's mechanical constraints. Validate that the 92-position count matches the circuit density needs without exceeding available board space.
Edgeboard Connectors Part Context
This component belongs to the broader category of TE Connectivity AMP card edge connectors. It serves as a specialized interconnect solution within the company's portfolio of board-to-board connection products, focusing on high-reliability applications in demanding environments.
Edgeboard Connectors Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Verify compatibility with existing mating cards and PCB footprints if considering alternative vendors or updated series from the same manufacturer.
