145275-2

Edgeboard Connectors Overview

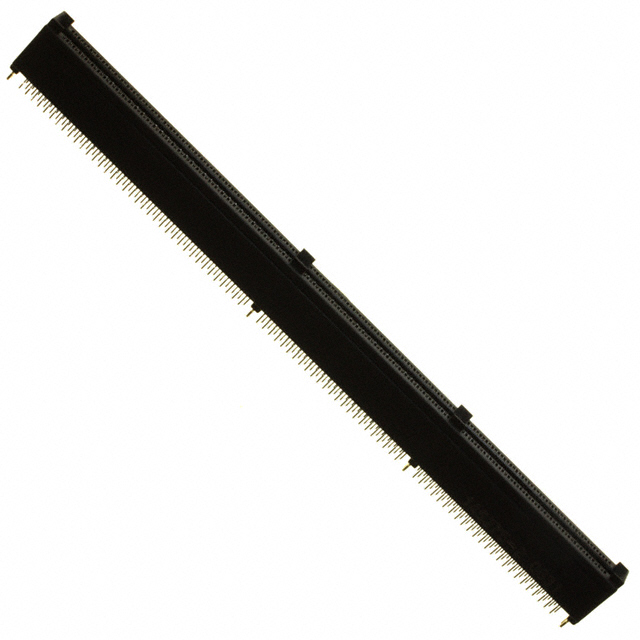

The TE Connectivity AMP Connectors model 145275-2 is a standard card edge connector designed for high-density applications. It features a dual configuration with 340 positions, providing extensive connectivity options for complex circuit boards. The connector utilizes a 1mm standard edge interface, ensuring precise alignment and reliable signal transmission. Constructed with a brown thermoplastic body, it offers mechanical stability without EMI shielding capabilities. The contacts are gold-plated to ensure low contact resistance and durability over repeated mating cycles.

Edgeboard Connectors Feature Summary

• Dual-sided card edge design accommodating 340 positions for high-density interconnects
• Gold-plated contacts ensure reliable electrical performance and corrosion resistance
• Brown thermoplastic housing provides structural integrity for standard unshielded applications

Edgeboard Connectors Applications

• High-density backplane interconnections
• Industrial control system board-to-board connections
• Telecommunications equipment signal routing

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and compliance documentation prior to procurement. Confirm that the unshielded nature of the component aligns with the electromagnetic interference requirements of the target application environment. Ensure compatibility with mating card edge thicknesses and manufacturing tolerances specified in the official product drawings.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, dual-sided connection is required without the need for integrated shielding. The 1mm pitch supports dense layouts suitable for advanced electronic systems. Consider thermal management and mechanical retention methods appropriate for the weight and size of the 340-position assembly during integration.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector family from TE Connectivity. It is characterized by its high position count and dual-sided accessibility. The design prioritizes signal density and mechanical robustness for demanding industrial and telecommunications environments where unshielded performance is sufficient.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Ensure any replacement maintains the 340-position count, 1mm pitch, and dual-sided configuration to preserve mechanical and electrical compatibility within the existing assembly.
