1452919

Overview

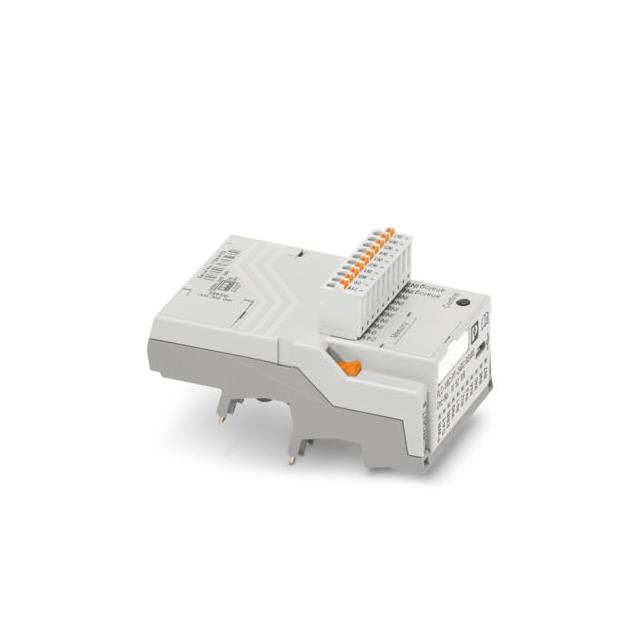

The Phoenix Contact PLC-V8C/PT-24DC/RS485 is a basic logic module featuring 16 I/Os for plug-in connection to eight digital or analog PLC interface terminal blocks. It supports RS-485 communication for Modbus/RTU protocols and includes a real-time clock. The unit connects via a micro USB port and allows expansion up to 48 I/Os when combined with extension modules.

Feature Summary

• Supports Modbus/RTU communication via integrated RS-485 interface
• Enables direct plug-in connection to PLC-INTERFACE terminal blocks
• Includes built-in real-time clock functionality
• Allows wireless access through compatible Bluetooth adapters

Applications

• Industrial automation control systems
• Modular DIN rail mounting setups
• Process data monitoring via mobile applications

Procurement Notes

Verify the specific ordering code matches the required communication protocol and I/O configuration. Confirm compatibility with existing PLC-INTERFACE terminal blocks before purchase. Ensure firmware requirements are met for intended Modbus/RTU operations.

Selection Notes

Select this model for applications requiring compact logic processing with expandable I/O capacity. It is suitable for projects needing wireless monitoring capabilities via Bluetooth adapters. Consider total system width constraints as the base unit occupies 50 mm on standard DIN rails.

Part Context

This component belongs to the PLC logic family, designed for modular industrial control. It serves as a foundational unit that integrates with various relay and analog modules. The system architecture prioritizes tool-free assembly and flexible signal switching for diverse automation tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
