146280-3

Headers, Male Pins Overview

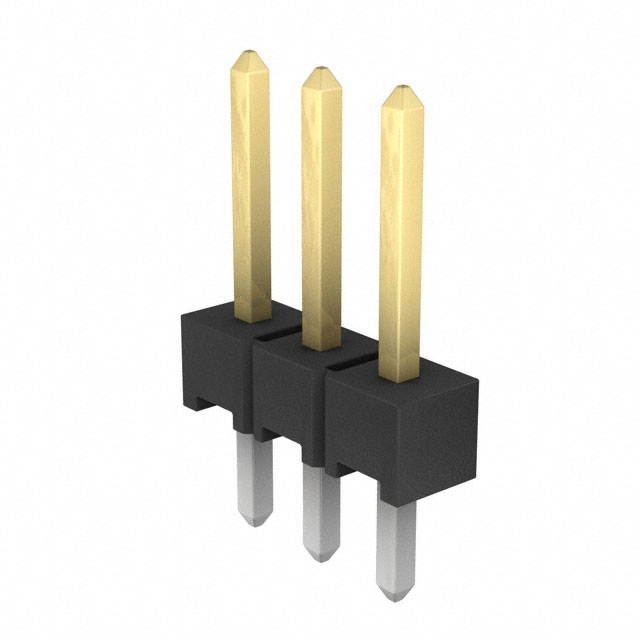

The 146280-3 is a vertical board-to-board header from the AMPMODU Mod II series, manufactured by TE Connectivity AMP Connectors. It features a 0.100 inch (2.54 mm) contact pitch and provides three positions in a single row configuration. Designed for through-hole termination, this component utilizes shrouded housing to ensure precise alignment during mating. The connector supports standard PCB mounting applications requiring reliable signal transmission with a robust mechanical interface.

Headers, Male Pins Feature Summary

• Vertical orientation design for direct PCB insertion
• Shrouded housing structure for guided mating
• Through-hole termination method for secure anchoring

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Industrial control module interfaces
• Consumer electronics internal circuitry

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and pitch specifications before ordering. Confirm RoHS compliance status if environmental regulations apply to your assembly process. Ensure that the through-hole footprint on the target PCB aligns precisely with the manufacturer's recommended land pattern to guarantee proper solder joint integrity and mechanical stability during operation.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical header with shrouded guidance is required for multi-layer board connections. The AMPMODU Mod II series offers consistent performance across various industrial environments. Consider the single-row layout for space-constrained designs where signal density does not require dual-row configurations. Validate thermal resistance ratings against peak soldering temperatures.

Headers, Male Pins Part Context

This component belongs to the AMPMODU Mod II family, a widely recognized line of rectangular connectors known for their versatility and reliability. The series encompasses various header and receptacle options with standardized 2.54 mm spacing. These connectors are engineered for high-volume manufacturing processes, providing consistent electrical performance and mechanical durability across diverse electronic equipment applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other manufacturers' headers with identical 2.54 mm pitch, 3-position count, and vertical through-hole mounting profiles. Verify that alternative parts maintain compatible shrouding dimensions and contact material specifications to ensure interchangeability without modifying existing PCB layouts or mating hardware constraints.
