1467140

Overview

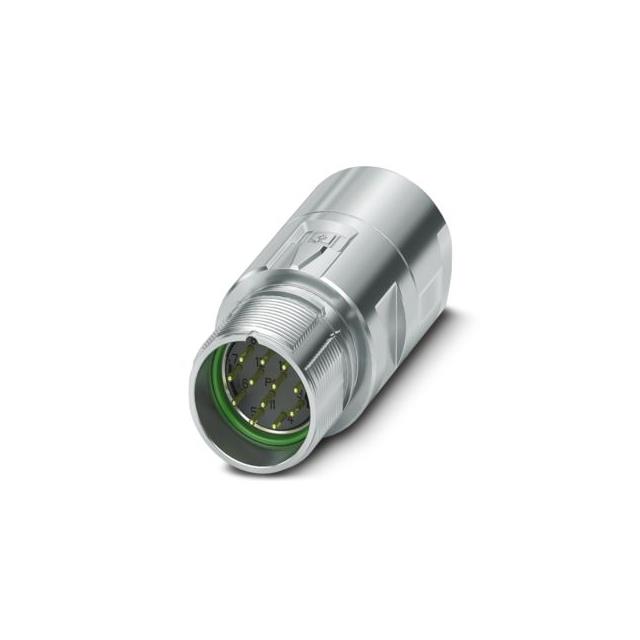

The Phoenix Contact 1467140 is a M23 PRO series coupler connector designed for signal applications. It features a straight, shielded male plug configuration with 12 positions. The contacts utilize solder termination and are available in gold-plated or nickel-plated variants. This component supports both standard locking mechanisms and the ONECLICK fast locking system, ensuring secure connections in industrial environments.

Feature Summary

• Shielded design for signal integrity
• Compatible with ONECLICK fast locking system
• Solder contact termination

Applications

• Industrial signal transmission
• M23 PRO series coupling systems
• Standard locking mechanism integration

Procurement Notes

Verify the specific contact plating option (gold or nickel) required for your application, as availability may vary between finishes. Confirm compatibility with the mating connector part number 257562 to ensure proper mechanical and electrical interface alignment within the M23 PRO ecosystem.

Selection Notes

Select this model when a shielded, straight male coupler is needed for signal lines. Ensure the installation environment supports the ONECLICK system if rapid connection is prioritized. Validate that the 12-position requirement matches the circuit density needs of the target assembly.

Part Context

This component belongs to the M23 PRO series, which provides robust circular connectivity solutions. It serves as a coupler connector, distinct from panel-mount plugs, facilitating modular interconnections. The design emphasizes durability and ease of use in automated or semi-automated industrial setups.

Replacement Considerations

The direct mating connector is identified by manufacturer article number 257562. Ensure any substitute maintains the same 12-position count, straight orientation, and shielding characteristics to preserve system integrity.
