1467142

Overview

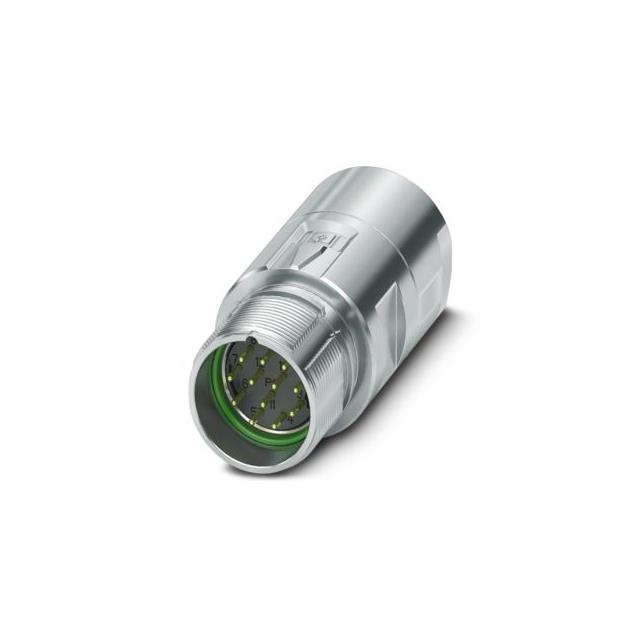

Phoenix Contact part number 1467142, also identified as M23-12P1N129003S, is a circular connector assembly belonging to the M23 PRO series. It is configured as a plug with male pins designed for solder cup termination. The connector features a straight housing orientation and includes twelve positions. It is shielded and compatible with standard and ONECLICK fast locking systems.

Feature Summary

• Straight design configuration for direct panel or cable mounting
• Pre-shielded construction for electromagnetic interference protection
• Compatible with standard and ONECLICK fast locking mechanisms

Applications

• Industrial automation signal transmission
• Control cabinet wiring connections
• Sensor and actuator interface integration

Procurement Notes

Verify the specific suffix codes against official Phoenix Contact documentation to ensure correct pin count and locking mechanism compatibility. Confirm that the solder cup termination type matches your assembly process requirements before procurement.

Selection Notes

Select this component when a shielded M23 plug with male pins is required for high-density applications. Ensure the mating connector supports the ONECLICK or standard locking system to maintain mechanical integrity in industrial environments.

Part Context

This component is part of the M23 PRO series from Phoenix Contact, designed for robust industrial connectivity. The M23 series offers high pin counts and reliable shielding, suitable for demanding factory automation and machinery control applications requiring secure electrical connections.

Replacement Considerations

Cross-reference with Phoenix Contact M23 series equivalents. Verify pin configuration and locking system compatibility before substituting.
