1467145

Overview

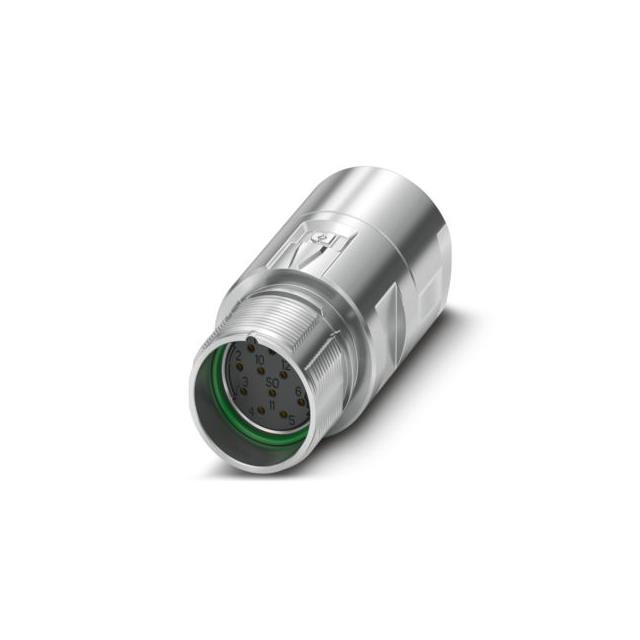

Phoenix Contact part number 1467145 is an M23 PRO series circular connector plug. It features a straight design with 12 positions and female solder contacts. The housing is shielded to provide protection against electromagnetic interference. Operating temperature range is -40°C to 105°C. Insulation material meets UL 94 V-0 flammability rating.

Feature Summary

• Shielded construction for electromagnetic interference protection
• Standard straight design compatible with standard locking systems
• Female solder contacts for secure wire termination

Applications

• Plant engineering signal connections
• Controller system interconnections
• Electrical device engineering applications

Procurement Notes

Verify the specific suffix N129002S matches project requirements. Confirm shielding continuity needs and mating connector compatibility within the M23 PRO ecosystem. Ensure environmental ratings suit the installation site conditions.

Selection Notes

Select this model for high-density signal routing requiring EMI shielding. The straight configuration suits panel mounting where space allows linear cable exit. Verify that the 12-position count aligns with circuit requirements before procurement.

Part Context

This component belongs to the M23 PRO series, designed for robust industrial environments. It complements Phoenix Contact's broader M23 connector family, offering standardized interfaces for reliable data and signal transmission in automated machinery.

Replacement Considerations

Direct substitutes include Phoenix Contact part number M23-12S1N129002S. Verify pin count and contact type match exactly before substitution.

FAQ

Is the connector shielded?

Yes, the M23-12S1N129002S is shielded to protect against electromagnetic interference.

What is the contact type?

The connector uses female solder contacts for wire termination.
