1467147

Overview

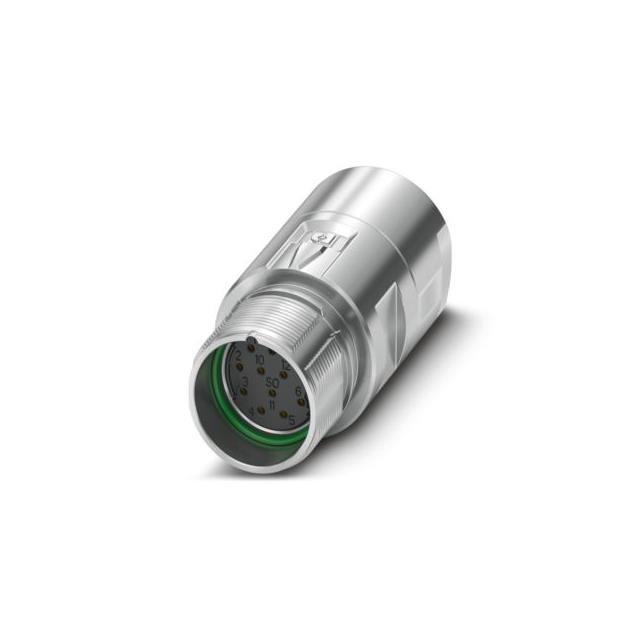

Phoenix Contact part number 1467147 is a M23 series coupler connector designed for signal applications. It features a straight, shielded cable-side socket housing with 12 positions and coding N. The component utilizes solder connections for contacts made of CuZn with Ni/Au plating. Rated voltage is 48 V AC or 74 V DC, with a rated surge voltage of 1.5 kV. The insulating body is constructed from PA 6.6, and the thread type is M23. It supports standard interlock systems and accommodates cable diameters between 10 mm and 14.5 mm.

Feature Summary

• Straight shielded design compatible with standard and SPEEDCON interlock systems
• Solder connection method for reliable contact attachment
• Standard direction of rotation with coding N to prevent misalignment

Applications

• Signal transmission in industrial automation
• Equipment connection within control cabinets
• Integration with SPEEDCON quick-connect systems

Procurement Notes

Verify current availability status as this product is in the process of being discontinued and must no longer be considered for new projects. Confirm technical compatibility with existing M23 interfaces before procurement. Consult sales representatives for approved alternative products that maintain system integrity. Ensure ordering details match the specific 12-position socket configuration required for your application.

Selection Notes

Select this component only for retrofitting or maintenance where the original CA-12S1N129008 was specified. Evaluate the 1.5 kV surge voltage rating against operational requirements. Consider the 100-cycle insertion/withdrawal limit for mechanical durability. Verify that the 10 mm to 14.5 mm cable diameter range matches the wiring harness specifications.

Part Context

This coupler connector belongs to the Phoenix Contact M23 series, which provides robust circular connectivity solutions. The part serves as a cable-side socket interface, complementing plug connectors in signal transmission setups. Its design emphasizes shielding effectiveness and secure locking mechanisms suitable for demanding industrial environments requiring reliable data and signal integrity.

Replacement Considerations

The manufacturer identifies part number 1467147 as the direct alternative to the discontinued CA-12S1N129008. Verify pinout and mechanical dimensions to ensure interchangeability. No other substitute part numbers are publicly confirmed in the provided documentation.
