Overview

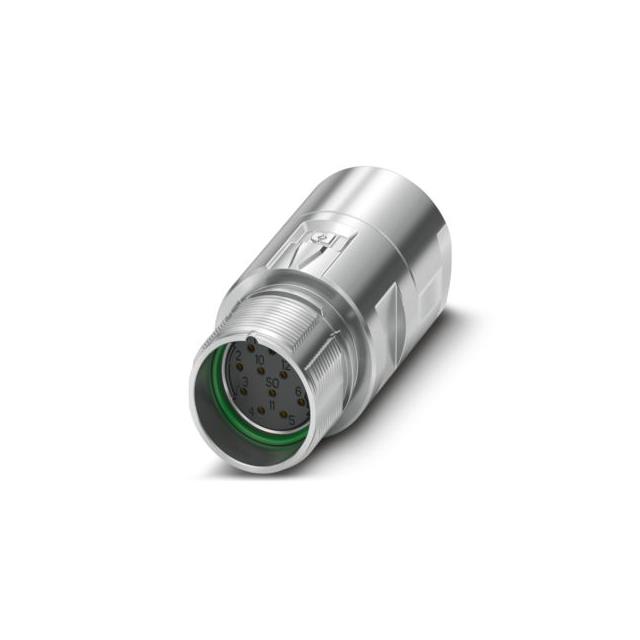

Phoenix Contact part number 1467148 is an M23 PRO series coupler connector designed for signal applications. This straight, shielded plug features a female socket configuration with twelve positions. It utilizes a solder connection method and supports standard and ONECLICK fast locking systems. The component is engineered for robust industrial environments, ensuring reliable data transmission through its secure mechanical coupling and electromagnetic shielding properties.

Feature Summary

• Straight design compatible with standard and ONECLICK fast locking mechanisms
• Shielded construction to protect signal integrity in industrial settings
• Female socket contacts utilizing solder termination for secure wiring

Applications

• Industrial signal transmission networks
• Automation system interconnections
• Control cabinet wiring assemblies

Procurement Notes

Verify the specific ordering suffix matches the required contact arrangement and cable entry type. Confirm that the solder pin dimensions align with your PCB or terminal block specifications. Ensure the ONECLICK compatibility requirement is met by your mating housing components before finalizing procurement orders.

Selection Notes

Select this component when a shielded, twelve-position M23 connector is required for signal applications. The straight orientation suits panel mounting scenarios where space constraints allow linear alignment. Verify that the operating temperature range meets your environmental conditions and that the soldering process capability exists within your assembly line.

Part Context

This coupler connector belongs to the M23 PRO series, which provides standardized circular connectivity solutions. The series emphasizes durability and ease of installation through integrated locking features. Part 1467148 represents a specific variant optimized for signal transmission rather than power delivery, distinguishing it from higher-current counterparts in the same product family.

Replacement Considerations

Direct substitutes must match the twelve-position count, M23 thread size, and shielded straight configuration. Verify compatibility with existing ONECLICK locking housings to ensure mechanical interchangeability without redesigning mounting structures.

FAQ

Does this connector support the ONECLICK locking system?

Yes, the component is designed for both standard and ONECLICK fast locking systems.

What is the contact configuration for this model?

The connector features a female socket configuration with twelve positions.
