1467181

Overview

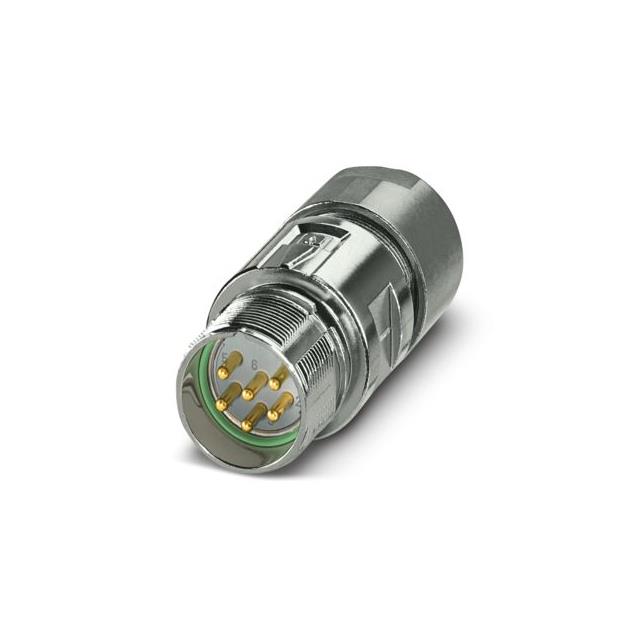

Phoenix Contact part number 1467181 is an M23 PRO series coupler connector designed for industrial applications. It features a straight configuration with six positions and a shielded design. The component supports standard and ONECLICK fast locking systems, ensuring secure connections in demanding environments. Rated for 20A current and 300V voltage, it utilizes solder termination for reliable electrical contact. The male plug type facilitates integration into modular cable assemblies.

Feature Summary

• Shielded construction for electromagnetic interference protection
• Compatible with standard and ONECLICK fast locking mechanisms
• Straight orientation for compact panel or cable mounting

Applications

• Industrial automation signal transmission
• Sensor and actuator network interconnections
• High-speed data communication link assembly

Procurement Notes

Verify the specific ordering suffix to confirm pin count and locking mechanism compatibility. Ensure the selected variant matches the required shielding and termination method for your system architecture. Cross-reference the manufacturer datasheet for precise mechanical dimensions and mating force specifications before finalizing procurement orders.

Selection Notes

Select this component when a robust, shielded M23 interface is required for high-current or sensitive signal applications. The ONECLICK compatibility offers faster assembly compared to traditional screw-lock variants. Consider the straight form factor for space-constrained routing scenarios where angular connectors are unsuitable.

Part Context

This coupler belongs to the M23 PRO family, which provides standardized circular connectivity solutions. The series is engineered for durability in harsh industrial settings, offering consistent performance across various mating cycles. It serves as a critical interface point between fixed cabling and movable equipment components.

Replacement Considerations

Direct substitutes include other Phoenix Contact M23-06P1N129003S equivalents. Verify that any replacement maintains the same 6-position layout, shielding integrity, and ONECLICK locking compatibility to ensure seamless interchangeability without redesigning the housing.
