1467187

Overview

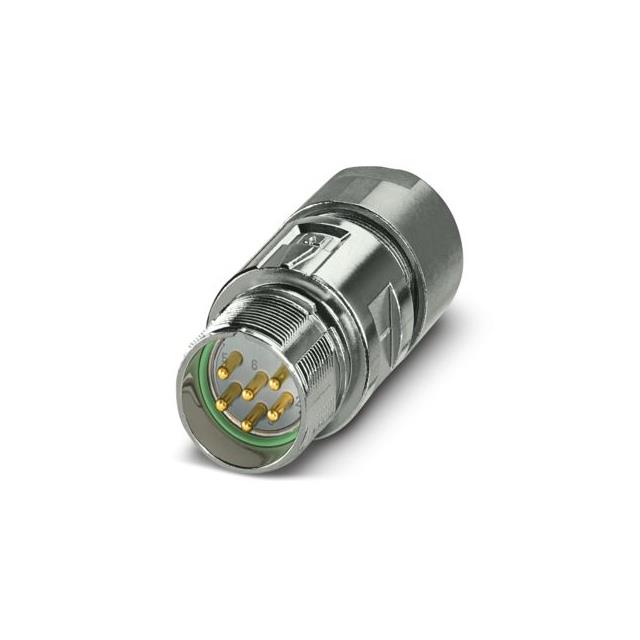

Phoenix Contact part number 1467187 is a M23 PRO series coupler connector designed for signal applications. It features a straight, shielded plug configuration with six male solder contacts. The component supports standard and ONECLICK fast locking systems and offers an IP67 ingress protection rating. Rated for 20A current, it utilizes screw connections for secure mating. The housing is constructed for durability in industrial environments, ensuring reliable data transmission under demanding conditions.

Feature Summary

• Shielded M23 PRO coupler connector for signal applications
• Supports standard and ONECLICK fast locking systems
• IP67 rated protection against dust and water

Applications

• Industrial signal transmission
• Sensor and actuator connections
• Automated machinery interconnects

Procurement Notes

Verify the specific suffix and revision level when ordering to ensure compatibility with existing ONECLICK or standard locking mechanisms. Confirm that the solder contact type matches your assembly process requirements. Cross-reference the manufacturer datasheet for precise mechanical dimensions and pinout configurations before integration into final designs.

Selection Notes

Select this component when a shielded, high-current M23 solution is required for signal integrity. The IP67 rating makes it suitable for harsh industrial environments. Ensure the mating connector supports the same locking system, either standard or ONECLICK, to maintain proper engagement and sealing performance during operation.

Part Context

This coupler belongs to the Phoenix Contact M23 PRO series, which provides robust connectivity solutions for industrial automation. The M23 form factor allows for compact design while maintaining high electrical performance. This specific model integrates shielding to minimize electromagnetic interference, ensuring stable signal transmission in electrically noisy factory settings.

Replacement Considerations

Direct substitutes must match the M23 form factor, 6-pin configuration, and IP67 rating. Verify compatibility with existing locking mechanisms and shielding requirements. Consult official Phoenix Contact documentation for approved equivalent part numbers within the M23 PRO family.
