Product Detailed Parameters
- Description：Interconnect Misc
- Series：*
- Mfr：Phoenix Contact
- Package：Bulk
Download product information
Overview

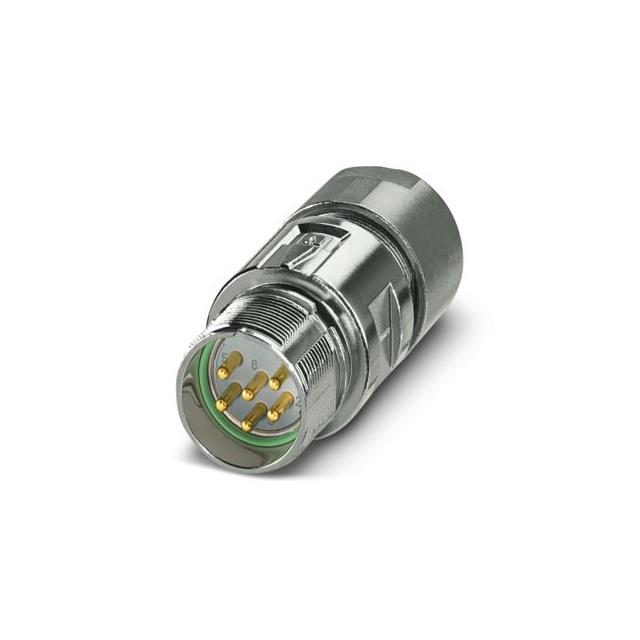

The Phoenix Contact 1467190 is a straight M23 PRO series circular connector plug featuring six male solder cup contacts. It provides IP67 ingress protection and supports signal applications with a rated current of 20 A and a rated voltage of 300 V. The component utilizes standard locking mechanisms compatible with ONECLICK quick-connect systems.
Feature Summary
- Straight housing design for compact panel mounting
- Solder cup contact termination method
- IP67 rated environmental sealing
- Compatible with ONECLICK quick-connect systems
Applications
- Industrial signal transmission
- Control cabinet wiring
- Sensor and actuator connections
Procurement Notes
Verify the specific suffix codes against official Phoenix Contact documentation to ensure exact pin configuration and termination type match. Confirm that the IP67 rating requirements align with the installation environment. Cross-reference the M23 PRO series compatibility with existing mating connectors to prevent interface mismatches during assembly.
Selection Notes
Select this model when a straight, shielded M23 plug with solder termination is required. Ensure the application demands a 20 A current capacity and 300 V insulation level. Verify that the ONECLICK system compatibility meets the assembly speed requirements. Check that the male pin configuration matches the female receptacle in the circuit design.
Part Context
This component belongs to the M23 PRO series, designed for robust industrial environments. It serves as a signal connector within the broader Phoenix Contact circular connector portfolio. The M23 size offers a balance between high pin count density and mechanical stability for demanding automation tasks.
Replacement Considerations
Direct substitutes must maintain the M23 thread size, six-position layout, and solder cup termination. Verify identical IP67 ratings and current/voltage specifications. Ensure the replacement part supports the same ONECLICK system compatibility if rapid connection features are utilized in the assembly process.
