1467191

Overview

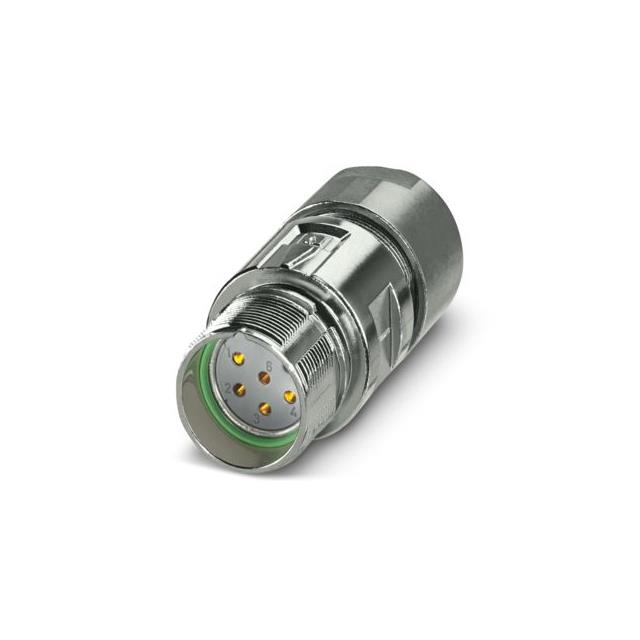

Phoenix Contact part number 1467191 is an M23 PRO series coupler connector designed for signal applications. It features a straight, shielded design with six positions and utilizes the standard and ONECLICK fast locking system. The connector employs soldering for electrical mounting and has an N polarization. Key specifications include a 6-pin configuration, female connector type, and compatibility with the M23 interface standard.

Feature Summary

• Shielded construction for enhanced signal performance
• Compatible with standard and ONECLICK fast locking systems
• Straight design optimized for space-constrained installations

Applications

• Signal transmission in industrial automation
• Connections requiring high shielding effectiveness
• Applications utilizing ONECLICK fast locking mechanisms

Procurement Notes

Verify the exact datasheet version from Phoenix Contact to confirm current compliance status with RoHS and REACH regulations. Ensure that the selected variant matches the required pin count and locking mechanism specifications for your specific assembly needs. Cross-reference the manufacturer's official documentation for any recent updates to the M23 PRO series product line.

Selection Notes

Select this component when a shielded, straight M23 coupler is required for signal integrity. The ONECLICK compatibility offers faster assembly compared to traditional screw-lock variants. Consider the soldering termination method during PCB or cable harness design. Verify that the N polarization aligns with mating connector requirements to prevent misalignment.

Part Context

The 1467191 belongs to the M23 PRO series, which focuses on robust connectivity solutions for demanding environments. This series distinguishes itself through integrated shielding and advanced locking technologies. It serves as a specialized solution within Phoenix Contact's broader circular connector portfolio, targeting applications where signal fidelity and secure mechanical connection are critical.

Replacement Considerations

Direct substitutes must match the M23-06S1N129002S specification exactly. Verify compatibility with existing ONECLICK tools and mating connectors. No generic M23 connectors are suitable due to specific shielding and locking differences.
