1467193

Overview

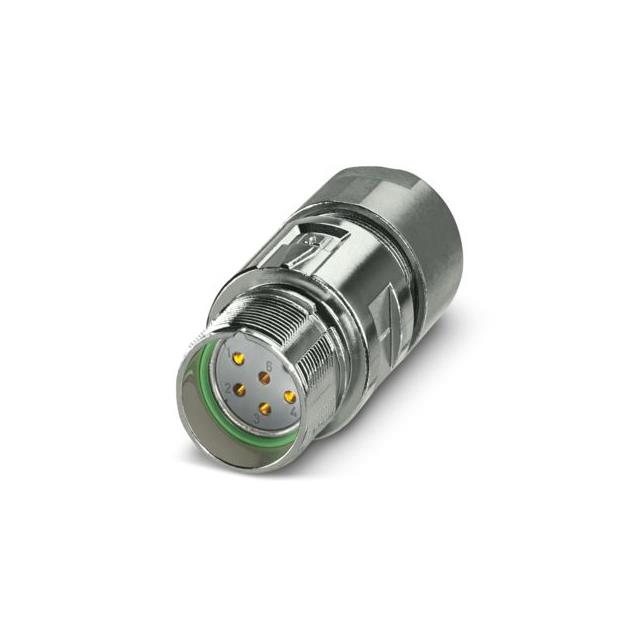

Phoenix Contact part number 1467193, also identified as M23-06S1N129003S, is a straight coupler connector belonging to the M23 PRO series. This six-position signal connector features female solder contacts and a shielded design compatible with standard and ONECLICK fast locking systems. It operates within an application temperature range of -20°C to 70°C and provides IP66 protection. The housing utilizes polyamide material, with dimensions including a height of 17.0 mm and a width across flats of SW29.

Feature Summary

• Designed for signal applications using the M23 PRO series architecture
• Supports both standard and ONECLICK fast locking mechanisms
• Constructed with shielded coupling for electromagnetic interference protection

Applications

• Industrial signal transmission systems
• Machinery control panel interconnections
• Automation equipment wiring

Procurement Notes

Verify current availability status as this product is listed as being in the process of discontinuation. Confirm that the required cable diameter matches the connector specifications before ordering. Ensure compatibility with mating connectors in the M23 PRO series. Check for updated replacement components if long-term supply stability is required for the project lifecycle.

Selection Notes

Select this component when a straight, shielded M23 coupler is required for signal integrity. The choice depends on the need for compatibility with ONECLICK locking systems and specific environmental ratings. Consider the solder termination method and polyamide housing material suitability for the intended operating temperature range and mechanical stress conditions.

Part Context

This connector belongs to the Phoenix Contact M23 PRO family, which focuses on robust industrial connectivity solutions. The M23 series is widely used in automation and drive technology. Part 1467193 specifically addresses the need for reliable signal transmission in compact spaces while maintaining high ingress protection standards through its shielded design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, consult official Phoenix Contact channels for direct equivalents or updated series replacements.
