1467197

Overview

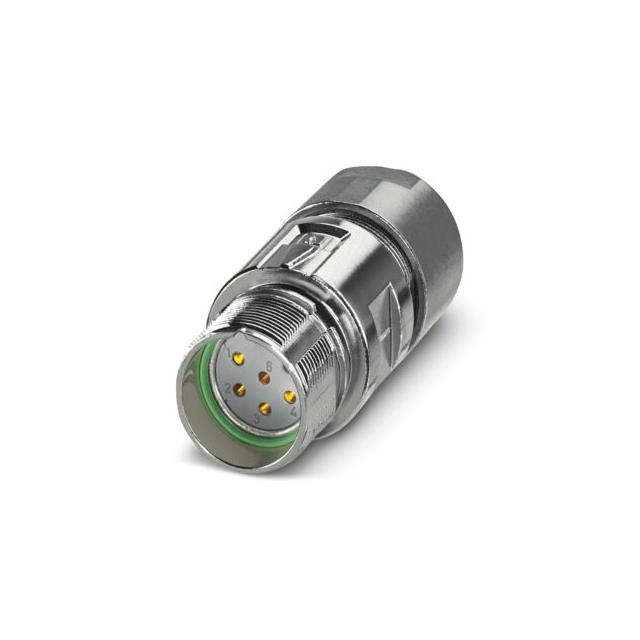

Phoenix Contact part number 1467197, also identified as M23-06S1N129004S, is a coupler connector from the M23 PRO series. It features a standard straight design with six positions and female solder contacts. The connector is shielded and compatible with both standard locking and ONECLICK fast locking systems. Rated for 20A current and 300V voltage, it serves industrial automation applications requiring signal transmission.

Feature Summary

• Shielded construction for electromagnetic interference protection
• Compatible with standard and ONECLICK fast locking mechanisms
• Designed for signal transmission in industrial environments

Applications

• Industrial automation signal connections
• M23 PRO series mating assemblies
• ONECLICK system integration

Procurement Notes

Verify the manufacturer article number 1467197 against the technical designation M23-06S1N129004S to ensure correct specification matching. Confirm that the required contact type matches the female solder variant documented for this specific part number before procurement.

Selection Notes

Select this component when a straight, shielded M23 coupler connector is required for signal applications. Ensure compatibility with the ONECLICK fast locking system if rapid connection is necessary. Verify that the 6-position configuration meets the circuit requirements.

Part Context

This component belongs to the Phoenix Contact M23 PRO series of circular connectors. It functions as a coupler connector designed for robust industrial use. The series supports various configurations, with this specific item providing a fixed 6-position interface for reliable signal connectivity.

Replacement Considerations

Cross-reference with other Phoenix Contact M23-06S variants within the same series. Ensure substitute parts maintain the same shielding, locking mechanism compatibility, and solder contact specifications.
