1467199

Overview

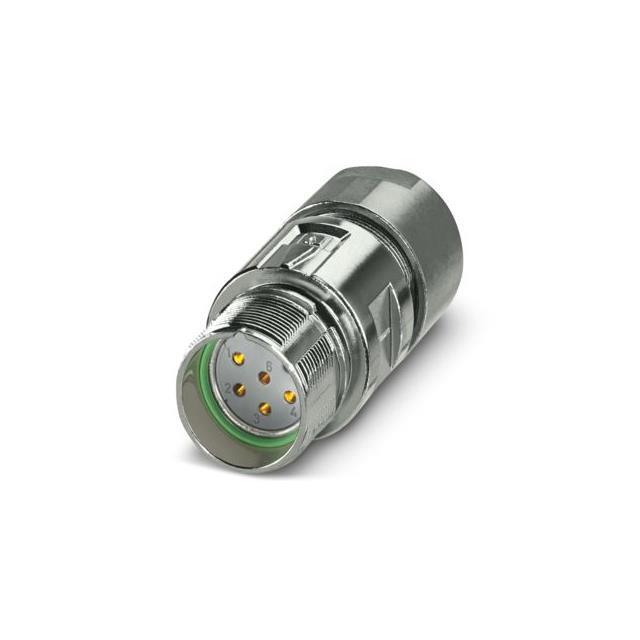

The Phoenix Contact 1467199 is an M23 PRO series coupler connector designed for signal applications. It features a straight, shielded plug configuration with six positions. The component utilizes female soldering contacts and supports both standard and ONECLICK fast locking systems. It operates with a standard direction of rotation to ensure secure connection integrity in industrial environments.

Feature Summary

• Supports standard and ONECLICK fast locking systems for secure coupling
• Shielded construction for signal integrity protection
• Straight plug design with female soldering contacts

Applications

• Industrial automation signal transmission
• M23 PRO series equipment interconnection
• Secure coupling in rotating machinery contexts

Procurement Notes

Verify the specific ordering suffix against official Phoenix Contact documentation to confirm exact contact arrangement and locking mechanism specifications. Ensure compatibility with mating connectors regarding the ONECLICK system or standard locking requirements before procurement.

Selection Notes

Select this component when a shielded M23 coupler with six positions is required for signal applications. Consider the straight housing geometry and solder termination method. Verify that the target application environment accommodates the standard direction of rotation and compatible locking system options.

Part Context

This part belongs to the Phoenix Contact M23 PRO series, which focuses on robust circular connectors for industrial use. The series emphasizes reliable signal transmission through shielded designs and versatile locking mechanisms suitable for demanding automation tasks.

Replacement Considerations

Consult official Phoenix Contact substitution guides for verified equivalents. Cross-reference mating connector specifications to ensure mechanical and electrical compatibility with existing system infrastructure.

FAQ

What locking systems does the 1467199 support?

It supports both standard and ONECLICK fast locking systems.

Is the connector shielded?

Yes, the 1467199 is a shielded coupler connector.
