1467232

Overview

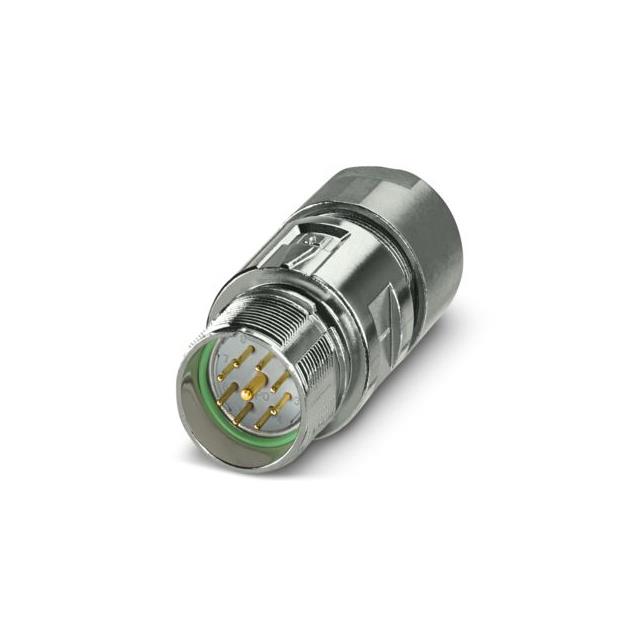

Phoenix Contact part number 1467232 corresponds to the M23-09P1N129002S coupler connector within the M23 PRO series. This component is a straight, shielded circular connector designed for signal applications. It features a male pin configuration with a total of nine positions, structured as eight signal contacts and one ground pin. The termination method utilizes soldering for secure electrical connections. The connector supports both standard locking mechanisms and the ONECLICK fast locking system, ensuring reliable engagement in industrial environments.

Feature Summary

• Straight design compatible with standard and ONECLICK fast locking systems
• Shielded construction for protection against electromagnetic interference
• Innovative interchangeable cassette system facilitates quick blade changing

Applications

• Industrial signal transmission
• Automation control systems
• Machine tool wiring

Procurement Notes

Verify the specific suffix N129002S when sourcing to ensure compatibility with the ONECLICK system and correct shielding requirements. Confirm that the solder termination type matches your assembly process capabilities. Cross-reference the Phoenix Contact catalog to validate the current revision status of the M23 PRO series documentation before finalizing procurement orders.

Selection Notes

Select this model when a straight, shielded M23 connector is required for signal integrity in noisy environments. The inclusion of the ONECLICK fast locking option makes it suitable for applications requiring rapid connection cycles. Ensure the mating connector supports the same cassette system if modular replacement is anticipated during maintenance.

Part Context

The M23 PRO series represents Phoenix Contact's advanced line of circular connectors, emphasizing modularity and ease of use. Part 1467232 specifically addresses the need for robust signal connectivity in compact spaces. Its design integrates ergonomic handling features, allowing technicians to perform installations efficiently while maintaining high standards of electrical performance and mechanical durability.

Replacement Considerations

Direct substitutes must match the M23 size, 9-pin male configuration, and solder termination. Verify compatibility with the ONECLICK locking mechanism if that feature is critical. Generic M23 connectors may lack the specific cassette interchangeability or shielding characteristics of this PRO series component.
