Overview

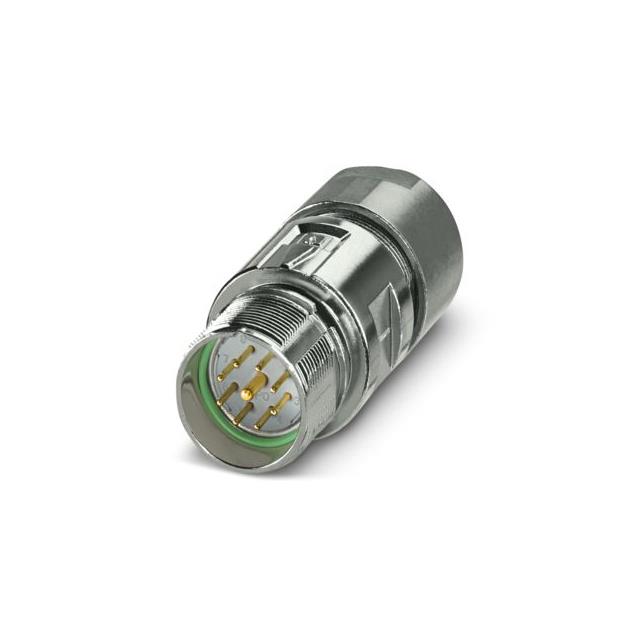

Phoenix Contact part number 1467234 is an M23 PRO series coupler connector designed for signal applications. It features a straight, shielded configuration with a male pin connection method utilizing solder termination. The component provides 8+1 positions and supports standard and ONECLICK fast locking systems. Polarization is designated as type N.

Feature Summary

• Supports standard and ONECLICK fast locking mechanisms
• Shielded construction for signal integrity
• Solder-based electrical mounting

Applications

• Industrial signal transmission
• Automation control systems
• Sensor and actuator connections

Procurement Notes

Verify the current lifecycle status before procurement planning. Confirm that the polarization code matches the mating connector requirements. Ensure the housing material specifications meet environmental conditions. Check for any specific RoHS compliance documentation if required by the project standards.

Selection Notes

Select this model when a shielded M23 coupler with 9 positions is required. Ensure compatibility with the ONECLICK system if rapid deployment is necessary. Verify that the solder connection method aligns with the assembly process capabilities. Confirm the straight orientation fits the spatial constraints of the enclosure.

Part Context

This component belongs to the Phoenix Contact M23 PRO series, which focuses on robust circular connectors for industrial environments. The M23 size offers high density and reliable performance for data and signal lines. The PRO series typically emphasizes durability and standardized locking mechanisms for heavy-duty use cases.

Replacement Considerations

The document identifies M23-09P1N129004S as an equivalent identifier. Verify mechanical dimensions and pinout configurations against existing designs before substitution. Ensure the replacement maintains the same shielding and locking system compatibility.
