1467235

Overview

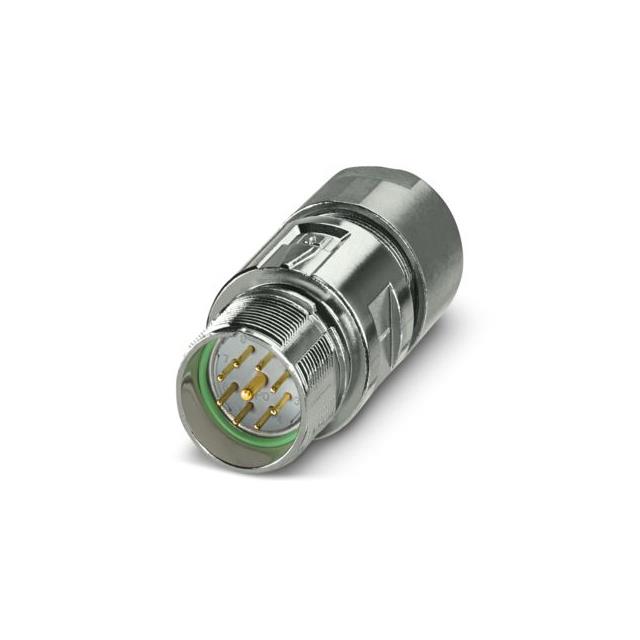

Phoenix Contact part number 1467235 is an M23 PRO series coupler connector, specifically the male plug variant designated as M23-09P1N1290DUS. It features a straight housing design with nine positions configured as eight signal pins and one ground pin. The connection method utilizes solder termination for reliable electrical contact. The unit is shielded to mitigate electromagnetic interference and employs standard locking mechanisms compatible with quick ONECLICK systems. Rated voltage is 300 V with a surge withstand capability of 2.5 kV, adhering to overvoltage category II and pollution degree 3 standards.

Feature Summary

• Straight male plug configuration within the M23 PRO series
• Shielded construction for electromagnetic interference protection
• Solder connection method for secure wire termination
• Compatible with standard locking and quick ONECLICK systems

Applications

• Industrial automation control panels
• Sensor and actuator network connections
• Machine tool signal transmission
• Data acquisition system interconnects

Procurement Notes

Verify the specific suffix DUS against the original equipment manufacturer's bill of materials to ensure compatibility with existing mating connectors. Confirm that the straight orientation and solder termination method align with the assembly requirements. Check for any updated revision codes or alternative suffixes that may indicate minor packaging or material changes while maintaining identical electrical performance.

Selection Notes

Select this component when a shielded M23 male plug is required for industrial environments. Ensure the application supports solder termination rather than crimp or PCB mount options. Verify that the straight housing geometry fits within the available panel space. Confirm that the 300 V rating and 2.5 kV surge voltage are sufficient for the specific circuit conditions.

Part Context

This connector belongs to the Phoenix Contact M23 PRO family, designed for robust industrial connectivity. The M23 series provides high-density signal transmission in compact circular housings. The PRO designation indicates enhanced durability and standardized locking features suitable for frequent connection cycles in demanding factory settings.

Replacement Considerations

Direct substitutes include other Phoenix Contact M23 male plugs with identical coding N, shielding, and solder termination. Cross-brand replacements must match the M23 thread size, 9-pin layout, and straight form factor to ensure mechanical interchangeability.

FAQ

What is the pin configuration of this connector?

The connector has 9 positions arranged as 8 signal pins and 1 ground pin.

Is this connector shielded?

Yes, the M23-09P1N1290DUS includes shielding to protect against electromagnetic interference.

What locking mechanism does it use?

It uses a standard locking mechanism compatible with quick ONECLICK systems.
