1467242

Overview

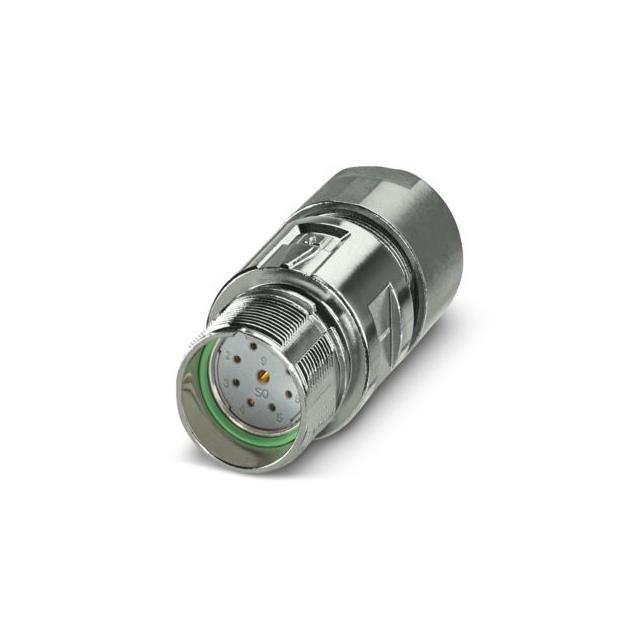

The Phoenix Contact 1467242 is an M23 PRO series coupler connector designed for signal applications. It features a straight, shielded housing with a female socket configuration and nine contacts arranged as eight signal pins plus one ground pin. The component utilizes solder termination for reliable electrical connections and supports standard locking mechanisms alongside the ONECLICK quick-connect system. Rated for IP67 ingress protection, it ensures durability in demanding industrial environments while maintaining signal integrity through effective shielding.

Feature Summary

• Straight design compatible with standard locking and ONECLICK quick-connect systems
• Shielded construction provides electromagnetic interference protection
• Female socket configuration with solder termination for secure wiring

Applications

• Industrial signal transmission
• Automation control systems
• Sensor and actuator interfacing

Procurement Notes

Verify that the specific part number matches the required contact count and termination type before procurement. Confirm compatibility with mating connectors within the M23 PRO series to ensure proper mechanical engagement and sealing performance. Check datasheet specifications for environmental ratings to validate suitability for the intended operational conditions.

Selection Notes

Select this component when a straight, shielded M23 connector is required for signal applications. Ensure the application environment necessitates IP67 protection and that solder termination aligns with the assembly process. Verify that the ONECLICK system compatibility meets the installation speed requirements of the project.

Part Context

This coupler connector belongs to the M23 PRO series from Phoenix Contact, which specializes in robust circular connectors for industrial use. The series offers various configurations to support different signal and power needs. This specific model focuses on signal transmission with enhanced shielding and quick-connect capabilities.

Replacement Considerations

Ensure substitute parts maintain the same M23 thread size, 9-pin configuration, and IP67 rating. Verify that the replacement also supports solder termination and compatible locking mechanisms to preserve system integrity.
